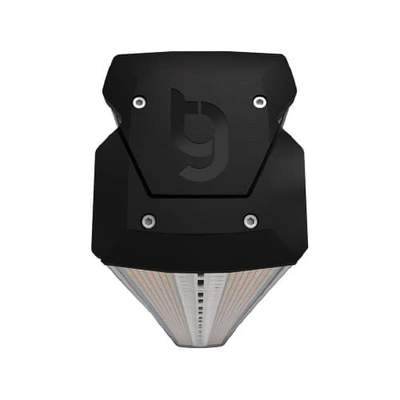

ThinkGrow LED Model-I Plus 720W LED Grow Light Bar

ECO Farm


Collections: ECO Farm Commercial Lights, ECO Farm Grow Lights, LED GROW LIGHTS

Type: Unknown Type

Product Features:

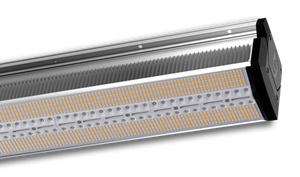

The fixture is a high-performance LED grow light for horticulture cultivation. The compact design with a built-in driver balances the energy efficiency and human work environment. The innovative V-shape design on the LED panel improves light distribution, which lowers the height from the canopy needed as it reduces light energy loss. Four spectrum channels including UV, White, Deep Red and Far Red are fully controllable to dial in the exact recipe of light your plants need (only available on TrolMaster HCS-2/3 controller). It provides great external control ability and allows up to 256 fixtures per channel with outstanding efficiency at 2.7 umol/J.

The Model-I Plus is only compatible with TrolMaster Hydro-X and TrolMaster Hydro-X Pro control systems. Up to 256 fixtures can be controlled in the same daisy chain channel via an LMA-T adaptor. While connecting to the original HCS-1 controller, the Full Spectrum channel and the Far Red channel can be controlled independently. This will allow the Far Red channel to be turned on for 10-15 mins after light off to help to finish the flowering cycle faster. While connecting to the HCS-2 controller, the same function can be achieved and an advanced spectrum tuning function is available for creating special light recipes.

Ultimate control on UV, White, Deep Red, and Far Red spectrums for creating special light recipes.



SPECIFICATIONS

PPF: 1944 μmol/s
Efficacy 2.7 μmol/J
Input Power 720 Watts Power Factor ≥ 90%
Weight 22.33 Ibs
Dimensions 45.24″L x 4.36″W x 6.46″H
Mounting Height > 2.5' Above Canopy
Lifetime L90 > 54,000 hours
Warranty 5 years standard
Input Voltage Autosensing 100-277  Volts.
Amp Draw
6.23 @ 120 Volt
3.09 @ 240 Volt
2.71 @ 277 Volt
IP Rating IP66
BTU 2456.74 btu/h
