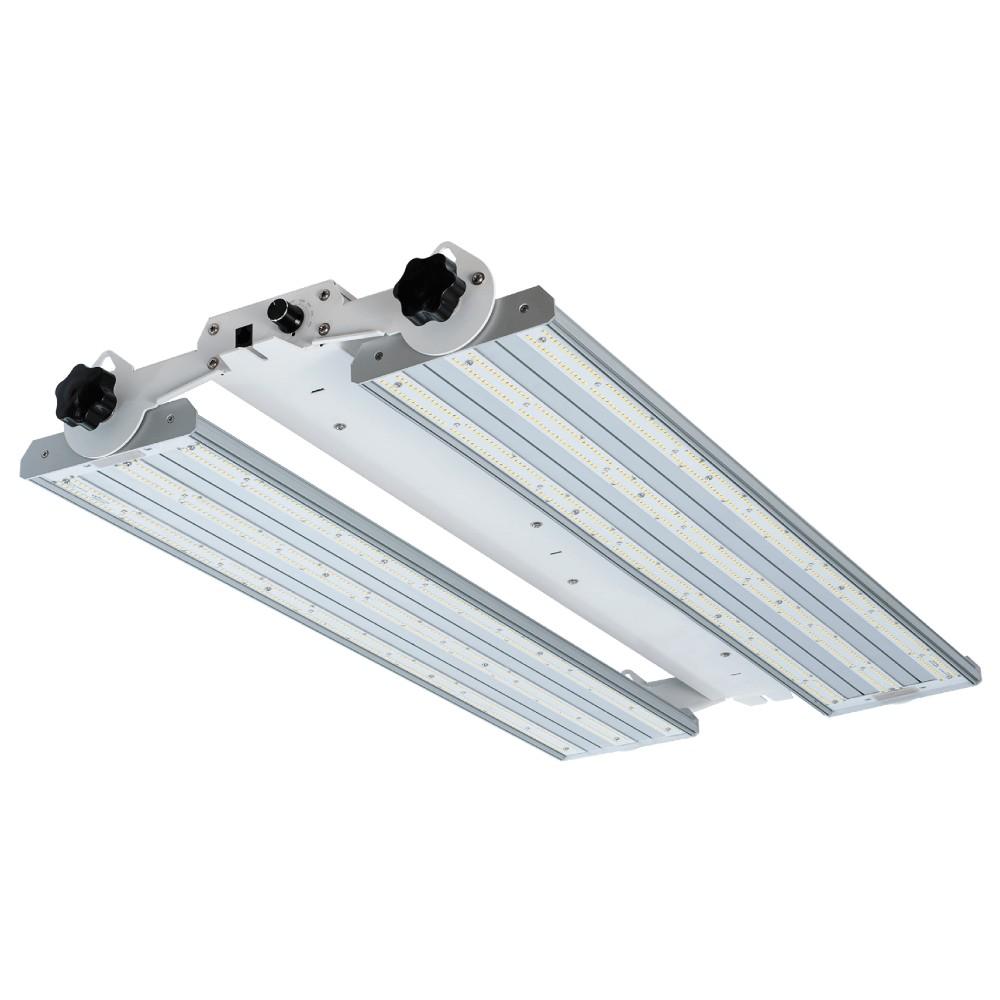

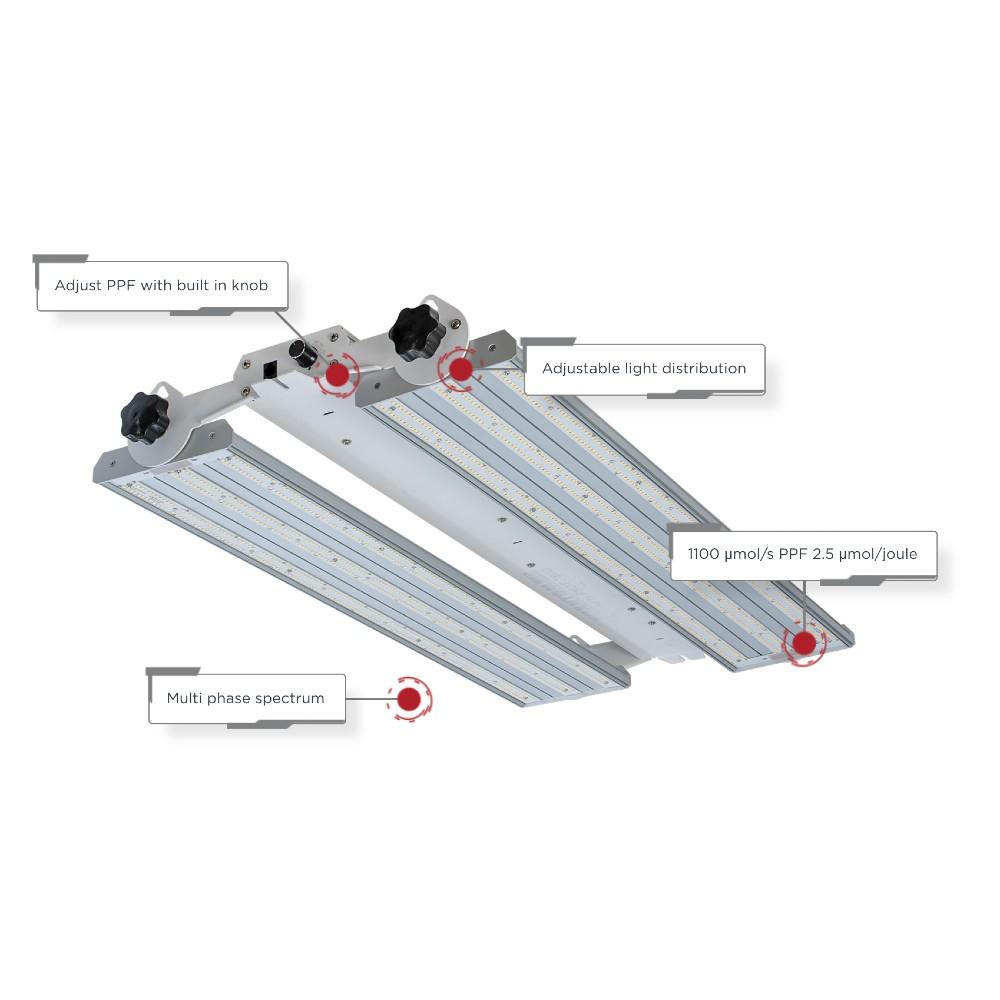

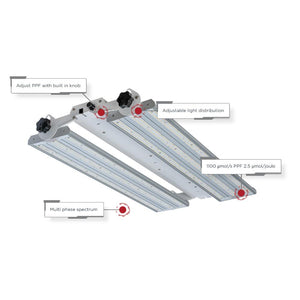

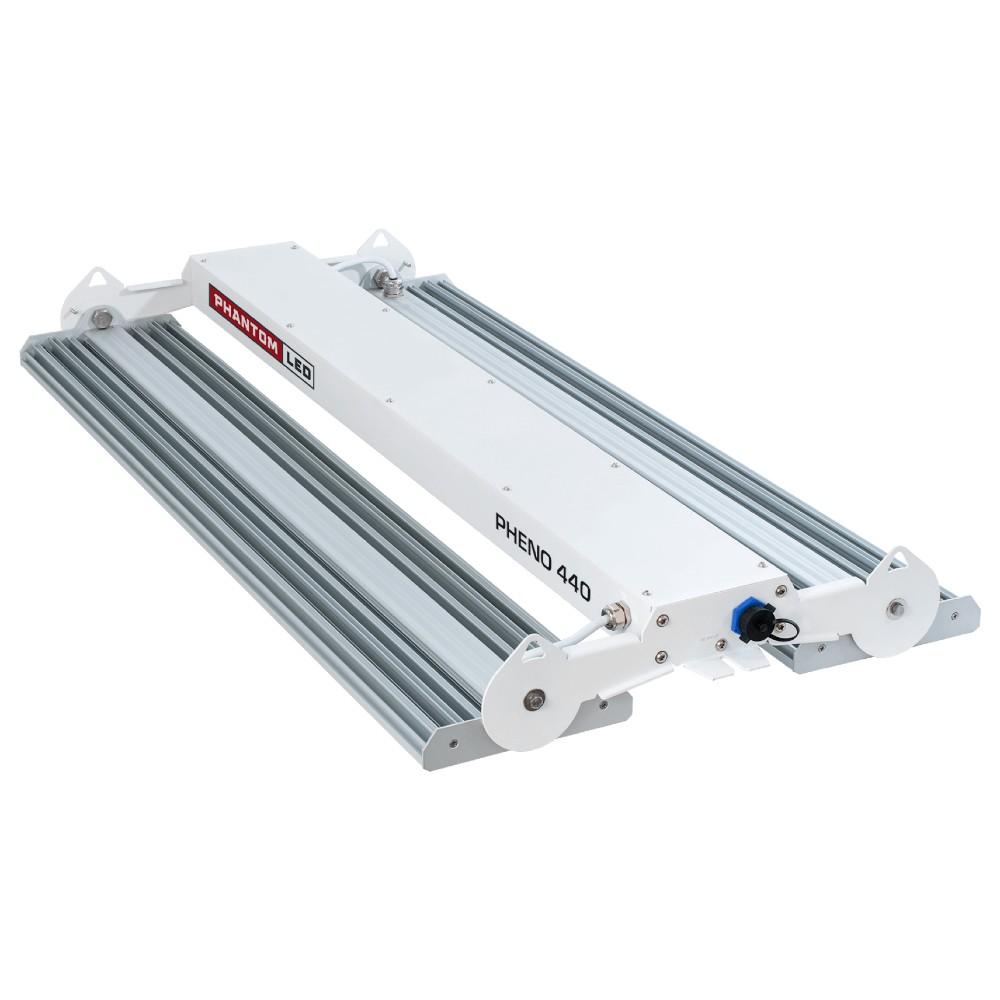

The Phantom PHENO 440 horticultural lighting system combines high photon flux with superior efficiency. The low-profile design and wide voltage range is ideal for a wide range of applications. Two adjustable light bars allow the user to adjust light spread. An integrated output knob provides control over the number of photons to the plant canopy.
Suitable for both flowering and vegetative stages, the Multi-Phase (MP) spectrum provides ideal red to blue ratio for vigorous growth and to maximize flower development.
- 1100 μmol/s PPF @277V
- 2.5 μmol/joule PPE @277V
- 440W, 100-277V Driver
- High-efficiency Multi Phase spectrum
- Integrated flux control knob
- Compact sized: 31.49"x 16.8" x 4.1"
- Net Weight: 19.4lbs/ 8.8kg
- Includes 10' 120V power cord
- DLC listed (H-LORIQO2) and qualifies for utility rebates, which play a significant role in optimizing the cost effectiveness of a lighting project

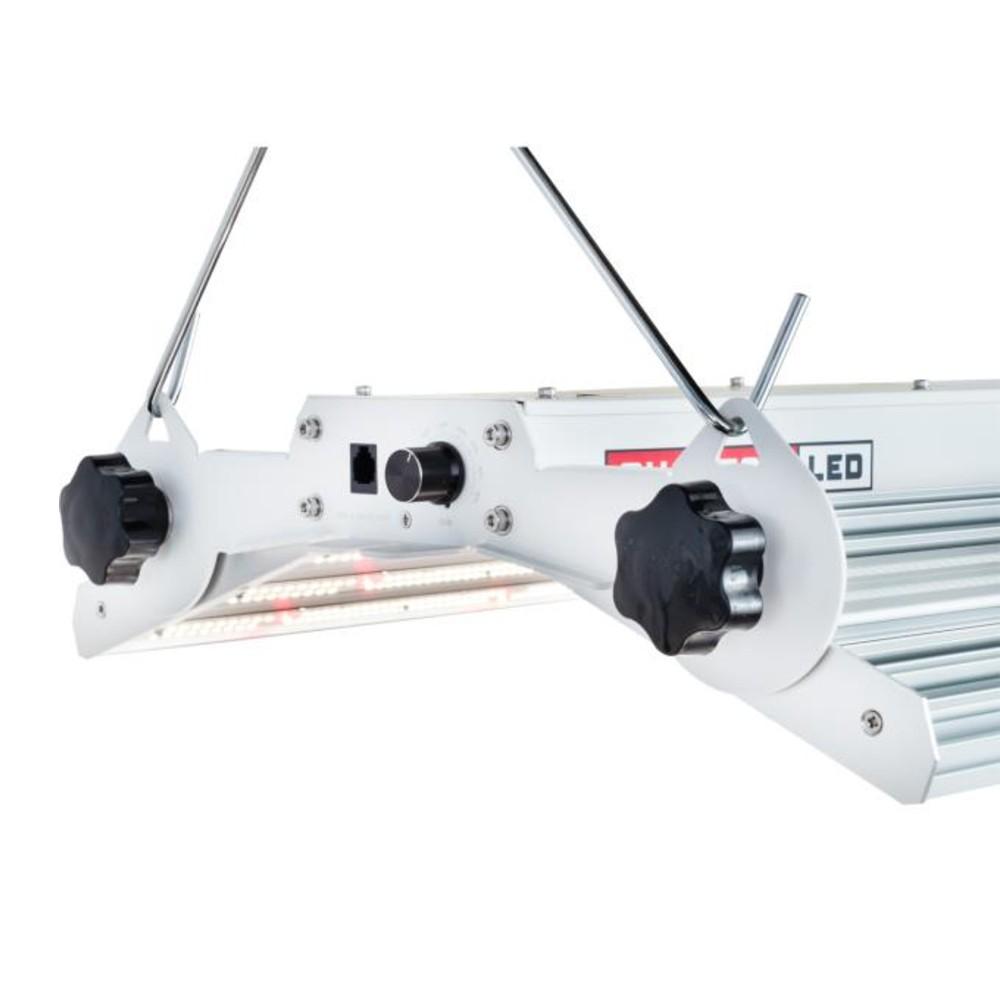

The Phantom PHENO offers the functionality of an on board dimming knob, allowing the grower to adjust the photon output intensity to accommodate the various stages of plant growth for optimal photosynthesis activation. With the knob adjusted to 100%, the PHENO uses 440W and puts out 1100 μmol/s photon flux (PPF). With the knob adjusted to 40%, the PHENO uses 176w and puts out 40% of the photon flux. The Multi-Phase spectrum does not change when using the dimmer knob and still provides ideal red to blue ratio for vigorous growth and to maximize flower development.
||PHOTON FLUX (µmol/s)
||AVERAGE POWER (WATTS)
||SWITCH THE KNOB TO THIS FOR USE WITH 0-10V CONTROLLER
||NO LIGHT EMMITTED
||100% OF TOTAL LIGHT EMMITTED
||80% OF TOTAL LIGHT EMMITTED
||60% OF TOTAL LIGHT EMMITTED
||40% OF TOTAL LIGHT EMMITTED
Fixture Type: High-Efficiency Horticultural LED
Spectrum: MP Spectrum
Typical Photon Flux Output: 1100 µmol/s
Input Power: 440W
Efficacy: 2.5 µmol/j
Input Voltage Range: 100–277V
Lifetime: Q90: >50,000hr
Optics: 120° Primary Optics
Driver: IP67 Driver (output compensating)
Operating Environment: Wet Location
Ingress Protection Rating: IP65
Weight: 47.5 lbs
Dimensions: 44" x 43.30" x 1.78"
A (1) Phantom PHENO 440 LED Lighting System
B (1) 120V Power Cord
C (1) Mounting cable and carabiner
D (1) RJ11 Cable
E (2) V Hangers
(1) Instruction (not shown)
Warranty: 5 Years
