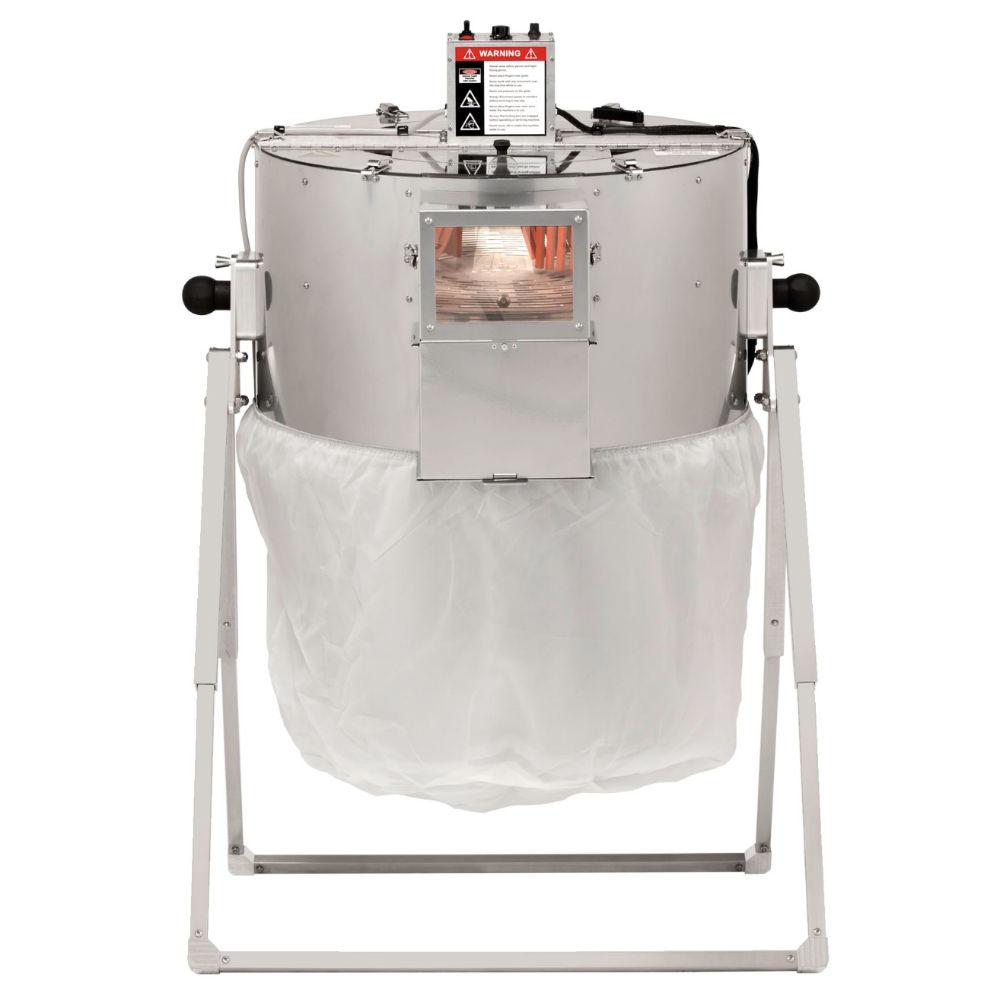

EzTrim Wet/Dry Trimmer Machine

The Satellite is hands down the best commercial bud trimmer on the market!

The Ez Trimmer achieves the best wet and dry trimming results over all other trimming methods. Originally designed before 2010, Ez Trim has worked hand in hand with growers of all sizes to evolve our machine into a “can’t live without” tool for operators around the world. The Ez Trimmer allows you to get the speed, control, and adjustability needed to achieve a high level of quality, regardless of strains or growing methods.

The key to the Ez Trimmers superiority is not only that it is quiet, light-weight, and filters yout trim, but that it allows the user to adjust the way in which it trims for wet and dry product, as well as different strains, sizes, and densities.

Tailored Trimming

Adjustable Settings:

-Direction and Speed of the Fingers

-Batch Times

-Trim Filtration Options

-Air Flow Control

-Specialty Grates for Wet/Dry Trimming

The Ez Trimmer works by utilizing a fan blade under its cutting blade that does several things. First, the fan blade creates suction to pull the leaf down through the grate and into the filtration bags, second, it creates a controllable vortex that assists in moving and dispersing the product as it’s trimmed, and lastly, it agitates the clipped leaf in the filtration bags helping to remove the trichomes as they are filtered through the bags.

The airflow is controlled with the airflow controller and small inner lids on the top of the machine. With one or both of the inner lids open the suction will increase and the vortex will decrease. This allows you to create a stronger vortex with wet or heavier product, or less of a vortex and more suction for dry or larfy product. In addition to the lids you can also adjust the airflow by changing the speed of the main motor.

The rotor and silicone fingers are used to help disperse and roll the product along the grate. The rotor speed and direction can be controlled. Slowing down the rotor will minimize agitation on delicate product while running the rotor in reverse (Against the flow of the vortex) can create more agitation

In addition to the adjustability with the cutting blade, airflow and rotor fingers, the Ez Trimmer also comes standard with two different trimming grates. The wet grate is for wet trimming and is 1/16” thick and has ¼” openings and the dry grate is 1/16” thick and has ⅛” openings. The dry grate is placed on top of the wet grate when trimming dry.

Trim Collection

The trim collection from the Ez Trimmer is unmatched by any other trimming machine. After being cut, the trim falls into a 4-layer trim sifting system that grades your leftovers from leaf to kief. Once in the bags, your trim remains undamaged by any sources of agitation like heat, compression, or movement. Being able to make high-quality extracts from your trim is key to maximizing the profits from your harvests.

 The first bag collects the larger leaf and stem, this product is good for extraction but contains and separates the majority of you chlorophyll filled leaf. The second bag collects your sweet leaf and is excellent for extraction and pre-rolls. The third bag is your B grade keif and the fourth bag is your A grade keif. These bags can be utilized as a dry sifter and can help you control potency levels with extraction.

Specifications

Weight: 110 lbs.

Ship weight: 125 lbs.

Assembled Dimensions: 32″L x 43″W x 43″H

Ship Dimensions: 32″L x 32″W x 48″H

Production (single operator): 20-30 lbs./hr. (Wet trimming in wet weight, dry trimming in dry weight)

Materials and Power

Materials Exposed to Plants:

Aluminum 6061 – FG; Stainless Steel – FG; Silicone – FG; Nylon – FG

UL Certified Components:

 5 wire harness(Control Box); Dayton Gear Motor; Fuse Holder; AC to DC 5V Power Supply; 4 Channel DC 5V Relay Module; Touch Screen; Motor Speed; Controller; Control Box Micro Controller; 9′ power chord; Meanwell power supply; Main Motor; Capacitor

Power:

120 VAC; 60 HZ; Single Phase; 10 Amps; 1200 Watts
