ECO Farm Intelligent Timing Automatic Irrigation Watering Solenoid Valve Controller

ECO Farm


Type: Unknown Type

  • ECO Farm watering controller is the programmable setting of watering time, standard clock time, etc.;
  • Full waterproof function.

  • Use two 1.5V AAA batteries;
  • Suitable for 0-8 kg water pressure;
  • Suitable for water temperature of 5℃-40℃;
  • Liquid medium: clean water
  • Maximum water temperature: 0-40 degrees Celsius
  • Working pressure: 0.0-4 kg watering times (can be controlled by the rotary switch), the shortest open valve watering time of the specified method is 1 minute, and the longest continuous output valve watering time is 120 minutes.
  • Watering cycle (can be controlled by rotary switch), the shortest cycle time is 1 hour, and the longest cycle time is 72 hours.
  • Power supply used: 3V, 2 AAA batteries, (2 AAA batteries)

  • How to use the battery (the first time the battery is installed, the water valve will self-check once, and the valve ball will automatically turn to the closed state)

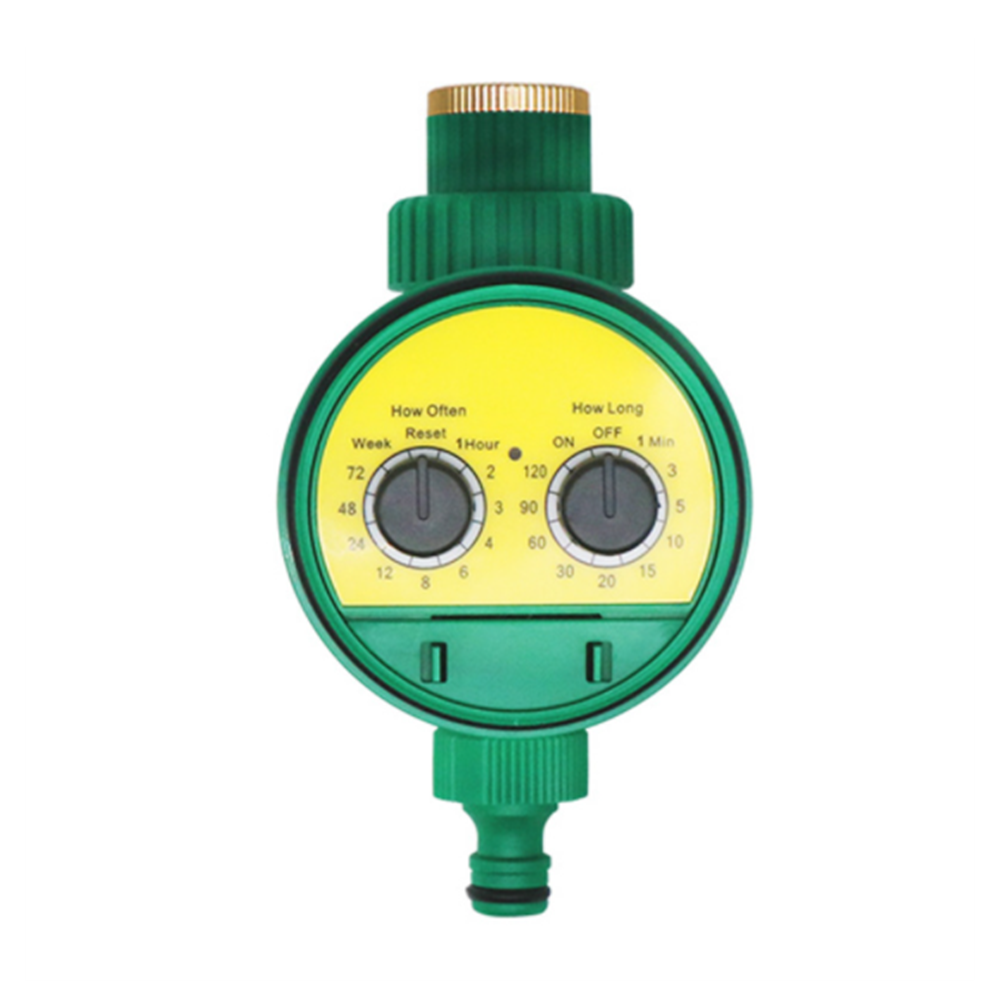

  • B Turn the rotary switch to the required cycle time point
  • A. Rotate the switch to the required continuous watering time point. The water valve will automatically work according to the set program within 10 seconds.
  • Note: The set cycle time cannot be less than the duration of the valve opening output time
  • When the B rotary switch is set to 0, the water valve is opened for watering only once A. When the rotary switch is set to OFF, the water valve will close.
