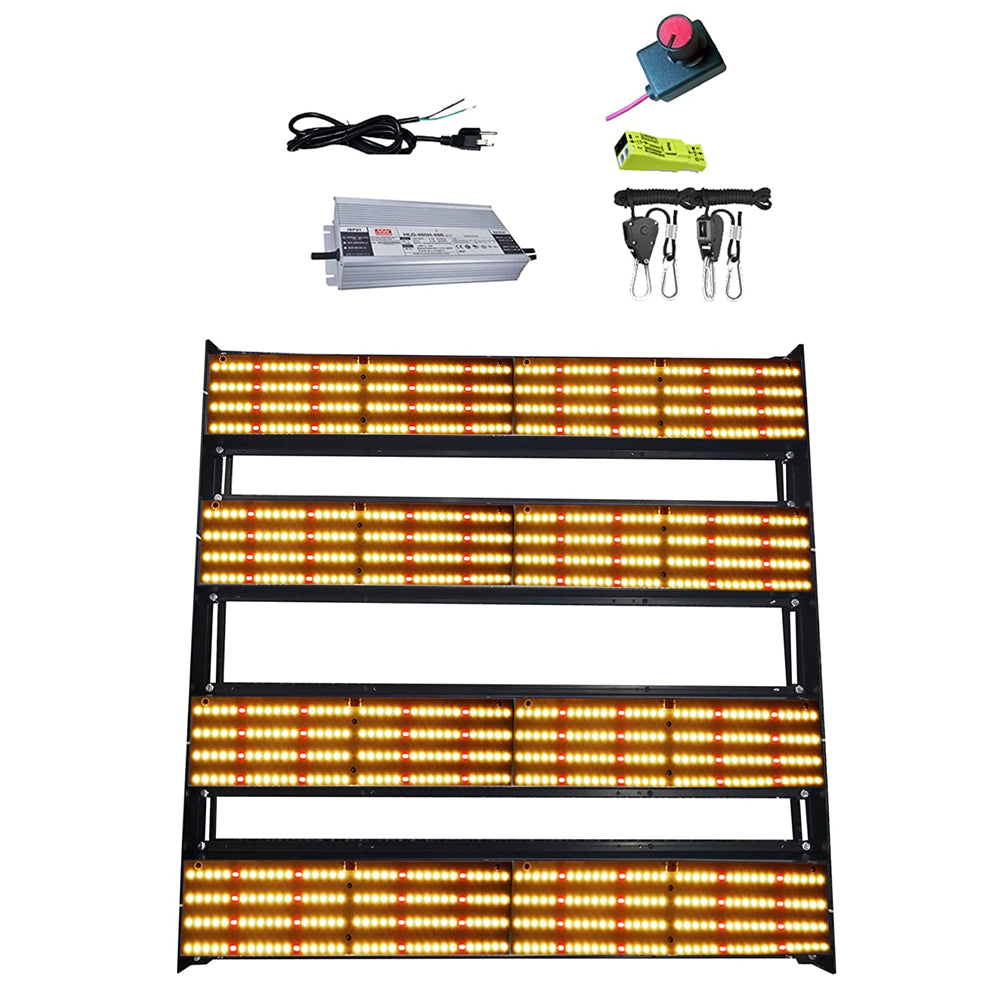

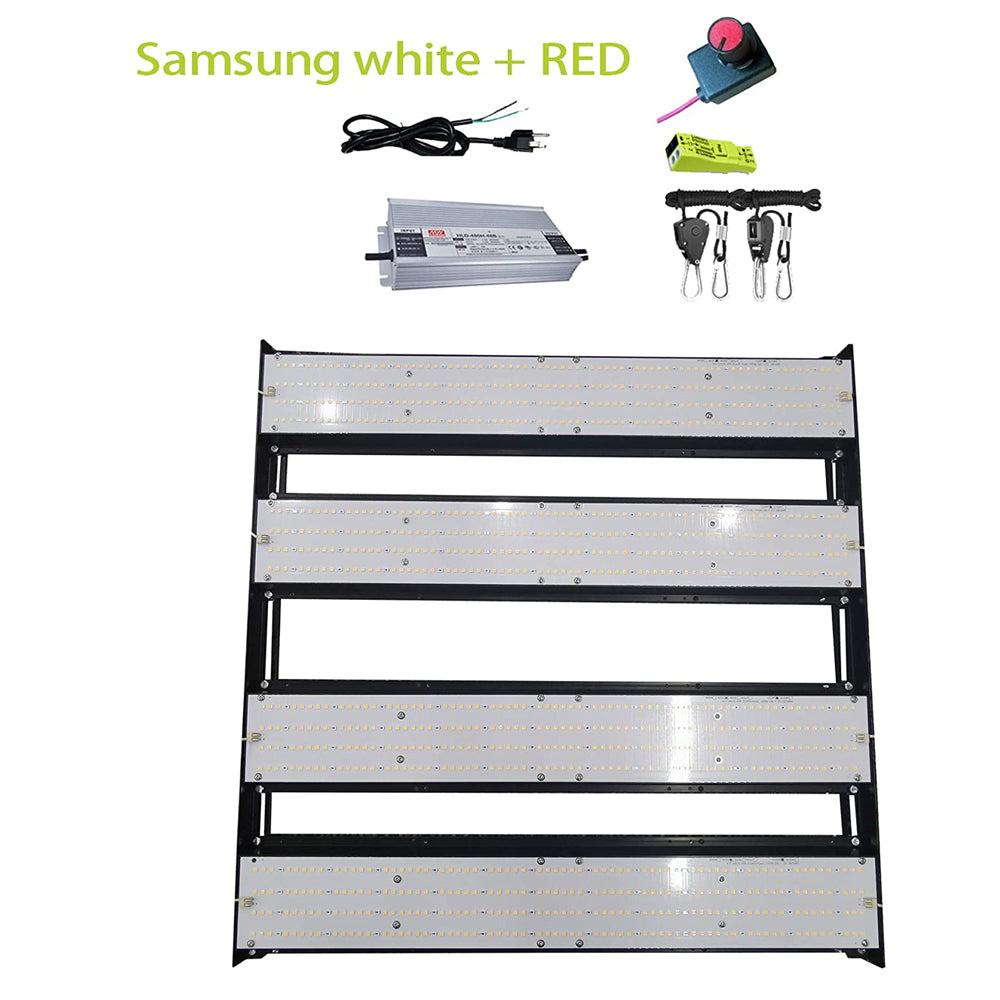

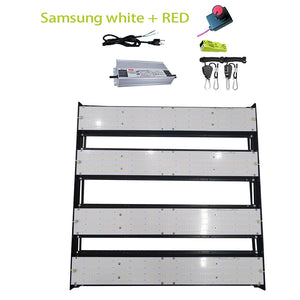

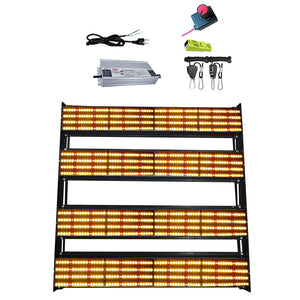

ECO Farm 480W V3 Samsung 301H Chips MeanWell Driver Movable Quantum Light Bar

ECO Farm


  • ECO Farm 480W V3 LM301H Movable Quantum Light Bar uses Samsung LM301H chip + Epistar Red 660nm , suitable for all the stages of your plants.
  • Each ECO Farm QB V3 grow light is designed with knob dimming and UV&IR can be independently controlled.


    • Reliable passive-cooled design (no cooling fans required)
    • Dimmable high-efficiency Meanwell driver.
    • High-quality original diodes from famous brands like Samsung, Epistar.

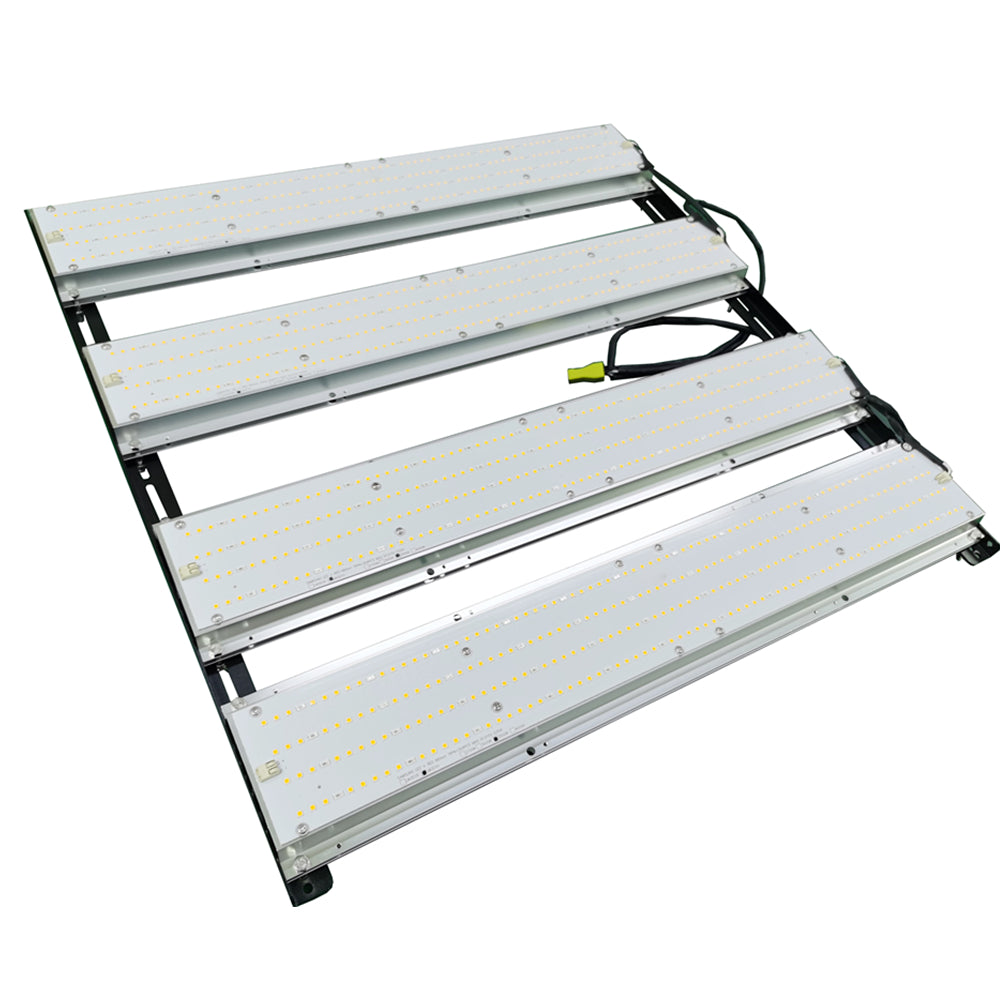

    • Adjustable distance between heatsinks effectively allows growers to cover the gradual growing plants.

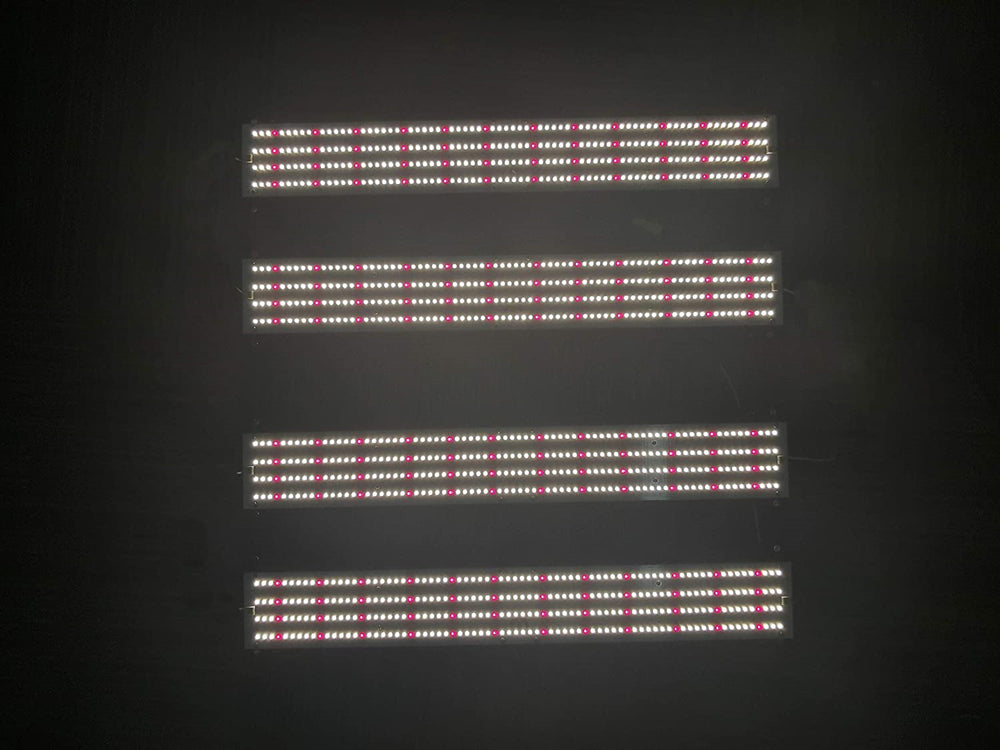

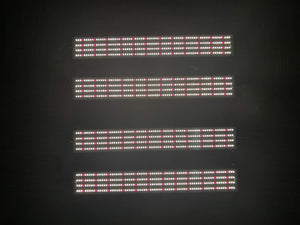

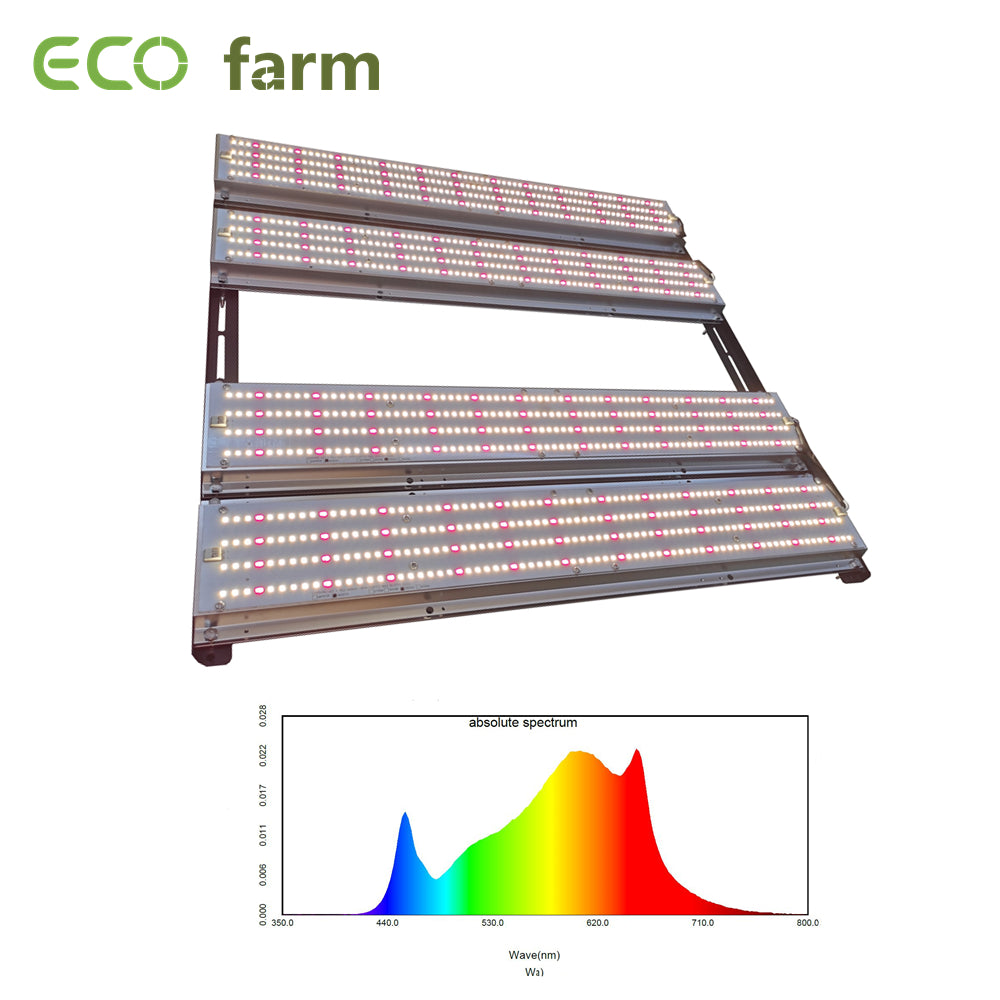

    • Full-spectrum 3500K top bin LM301H diodes with supplemental 660nm Deep Red for vigorous flower development.
    • High Efficiency and PPFD value

    Led Diodes: 1024x LM301H +
    192x 660nm Epistar
    Total Led Quantity: 1216 pcs
    Power: 480w MeanWell Driver HLG-480H
    Voltage Range: 100-277V
    Photon Efficacy: 2.6µmol/J
    Lamp Luminous Flus (Lm): 76800 Lm
    Efficiency: 160Lm/w
    Total output - PPF: 1262 μmol/s
    PPFD at 40CM: 1923 μmol/m2/s
    Flowering Footprint (coverage): 1.2x1.2m2
    Veg Footprint (coverage): 1.5x1.5m2
    Collor temperature (K): 3500K
    Frequency: 50/60Hz
    Color Rendering Index (CRI): >80 Ra
    Electric current intensity: 2100 mA
    Dimensions: 58.5 x 58.5 x 3 cm
    Lamp weight: 8 Kg
    Single package size: 650 x 125 x 650cm
    Single gross weight: 10 Kg
