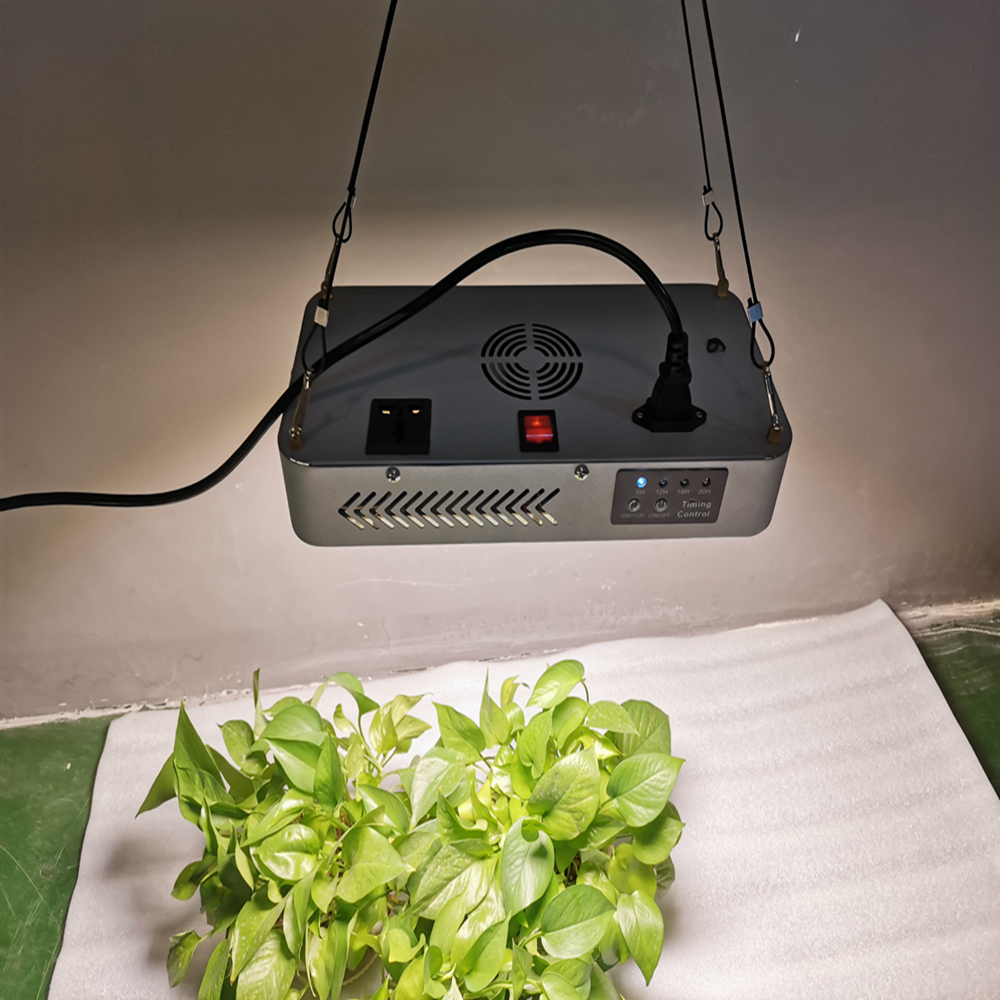

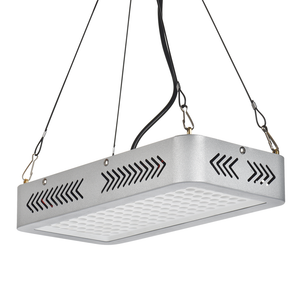

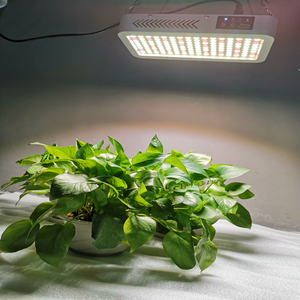

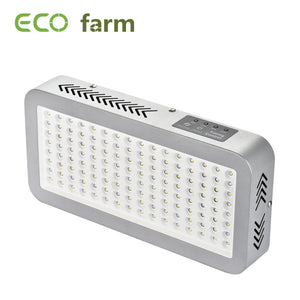

ECO Farm 120W COB Full Spectrum LED Grow Light With Domestic Chips Segmented Loop Timing Light

ECO Farm


ECO Farm high power 120W LED Grow Lights emit a higher amount of Lumen, PPFD and Par Value than other grow lights on the market. This delivers more power with deeper penetration than any other light is capable of.


Model 120W led grow light
PPFD 30cm-1257μmol/(m·s)
Effective irradiation range(100CM high) 0.7

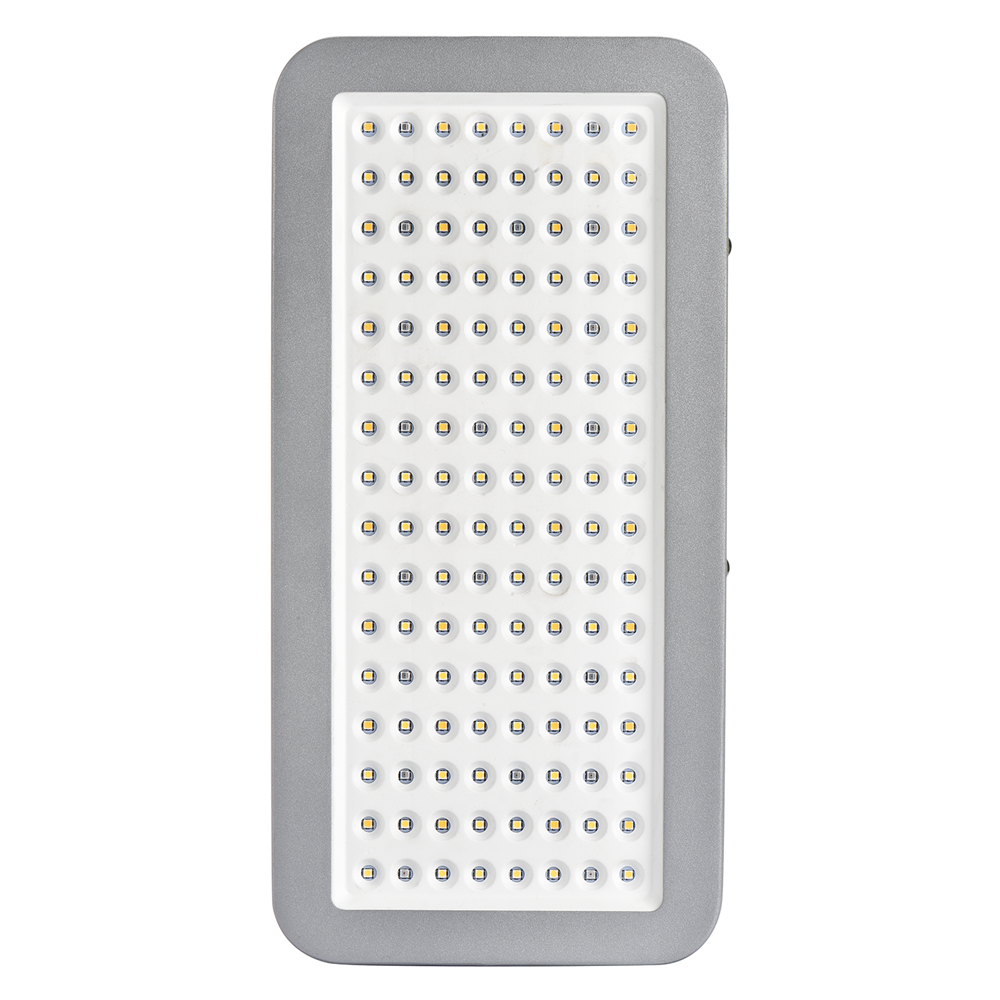

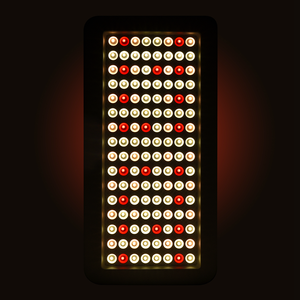

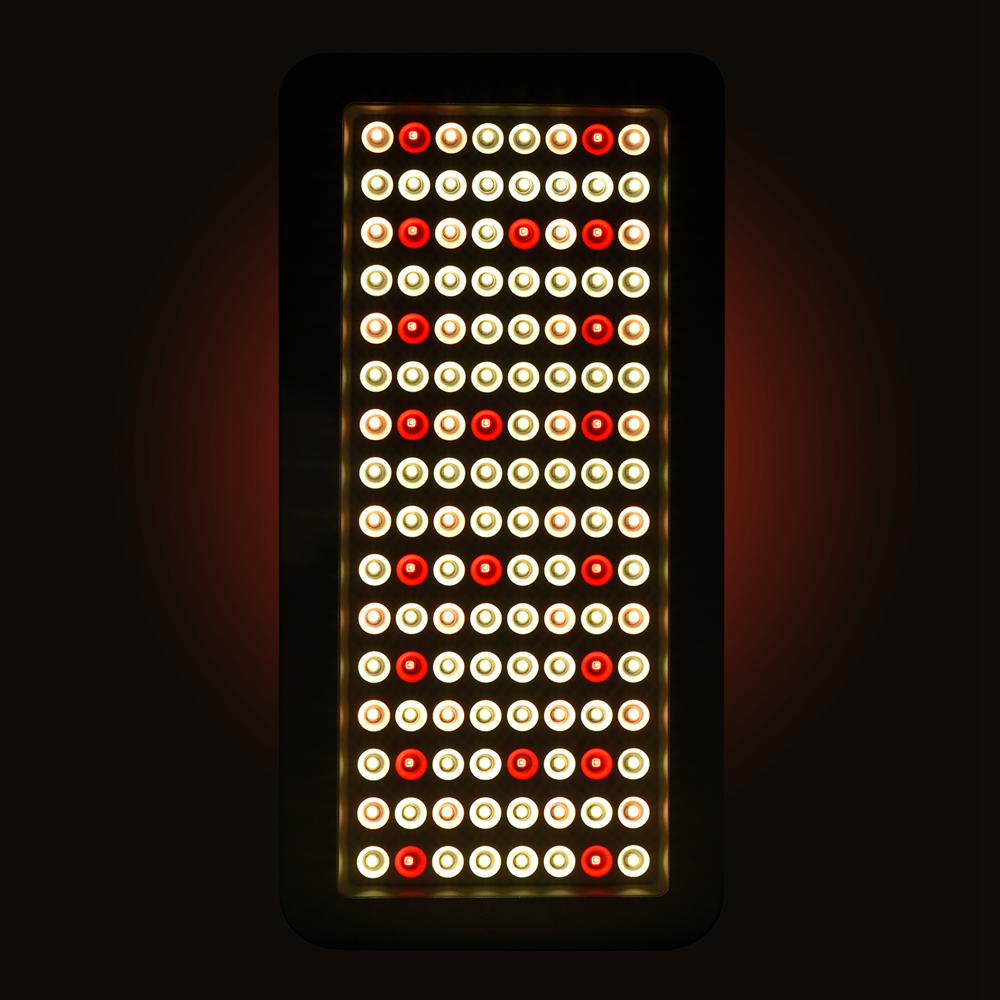

Lamp beads 3030-1w-128pcs 660mm 3000k 4000k740n m 395nm
Single current 350mA
Power factor >0.95
Efficacy 2.7 μmol/J
Leds Angle 120 Degree
Product Size 350*170* 56mm
Input voltage AC 100-240V
Timer Segmented loop timing
CCT Monochromatic wavelength ratio full spectrum
Waterproof IP63
Lamp body material 6063 aluminum
Working temperature -25°C ~ 40°C
Lifetime 50000h
Warranty  15000h



AT 30CM:

AT 60CM:

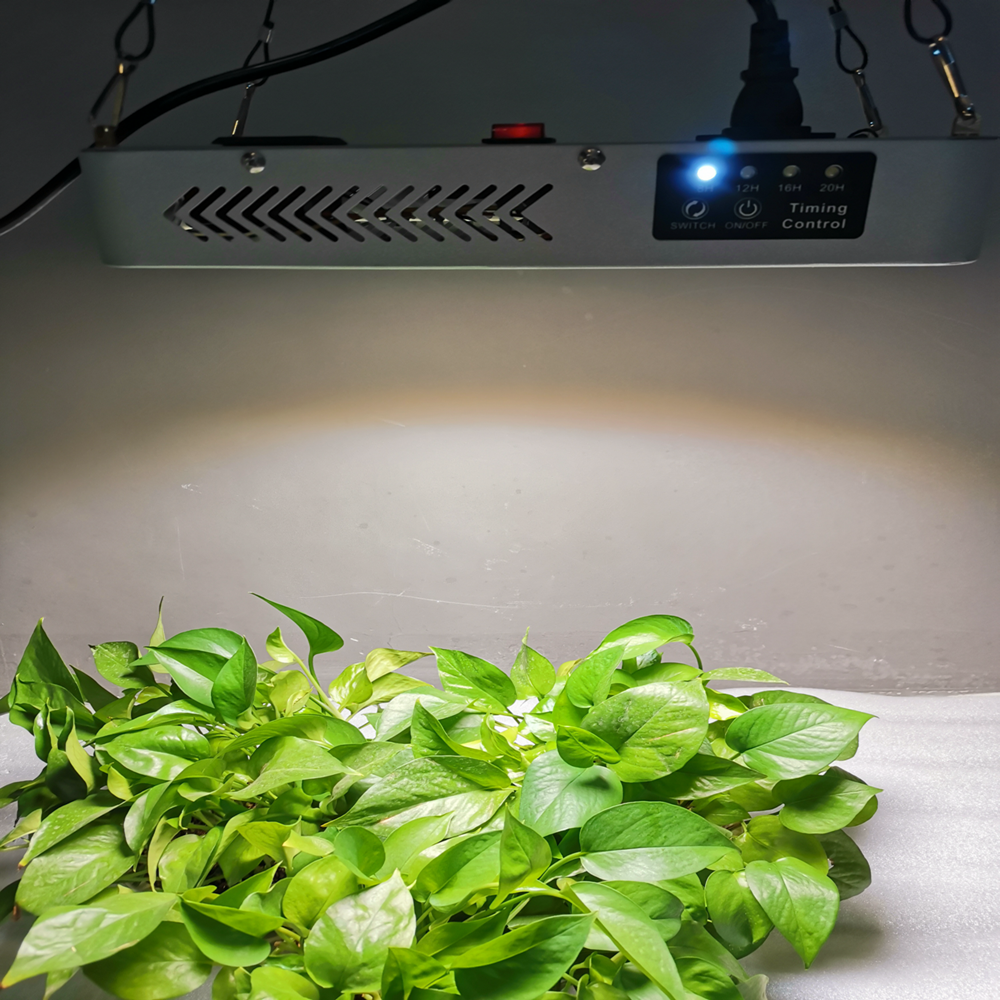

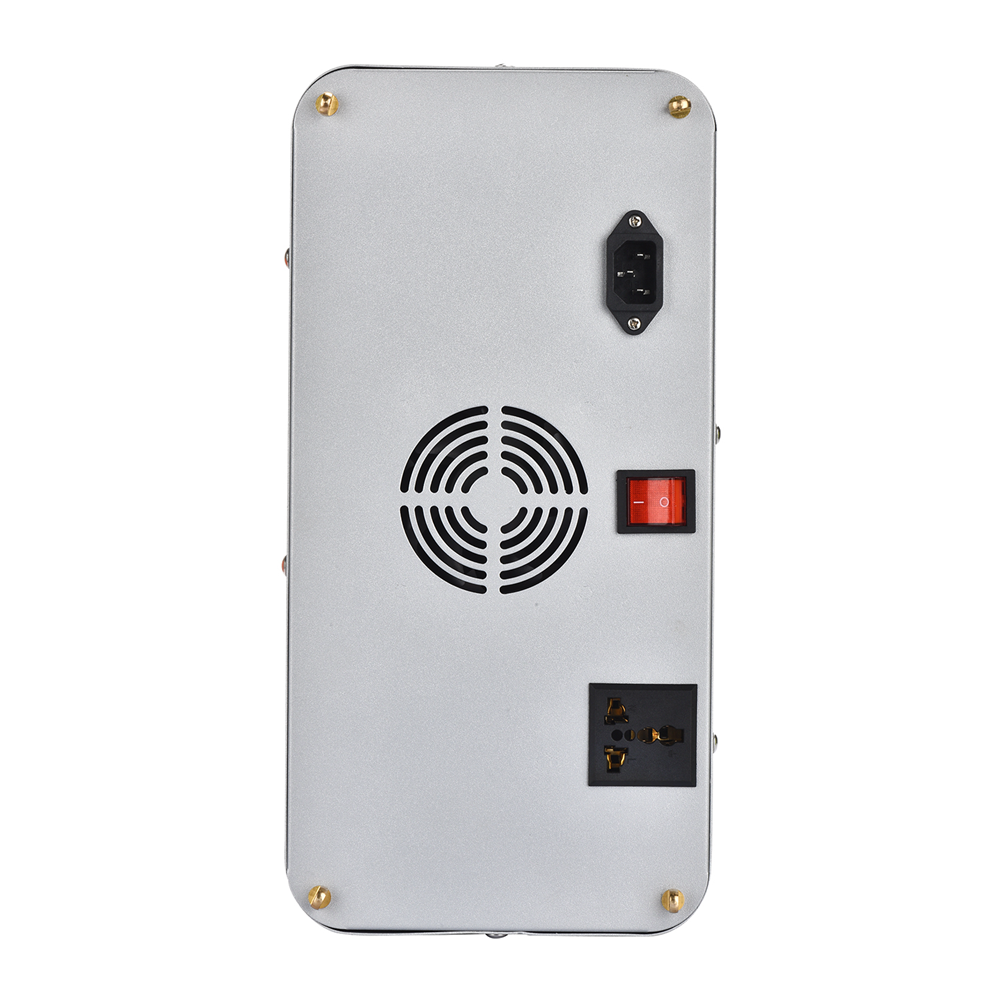

  State 0: The power cord is connected to the power supply, the power switch is in the off state, the whole machine does not start, the timing function does not start, and all the timing indicators are off. At this time, the timing function cannot be activated even if the timing button is pressed, and all the timing indicators are also Can't light up.

  State 1: The power switch is in the on state (that is, the power switch is turned on), the whole machine (lighting) starts and is in the state of constant light, the timing function is not activated, and all timing indicators are off

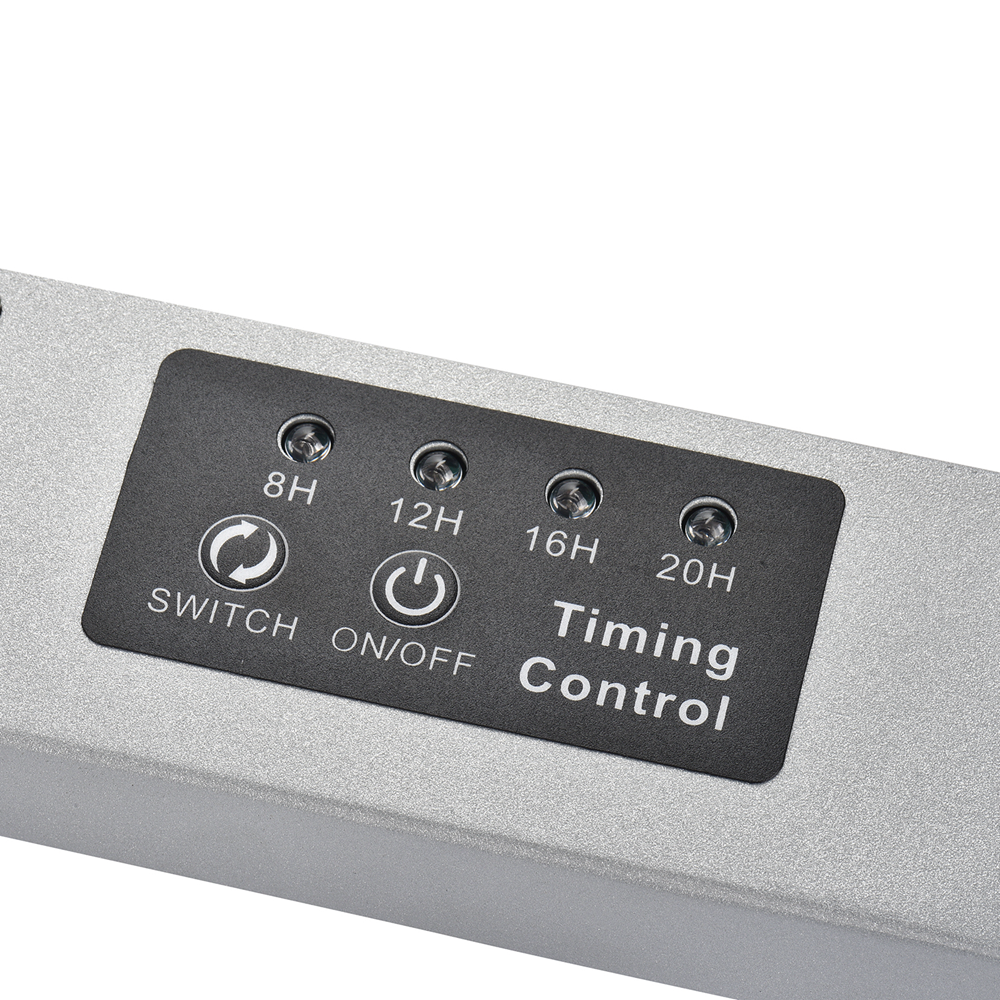

 State 2: On the basis of State 1, press the timing button once, the timing function is turned on, the whole machine (lighting) starts and is in the 8-hour timing state, and the corresponding 8H timing indicator light is on (other timing indicators are off)

  State 3: On the basis of State 2, press the timing button once, the timing function is turned on, the whole machine (lighting) starts and is in a 12-hour timing state, and the corresponding 12H timing indicator light is on (other timing indicators are off)

  State 4: On the basis of State 3, press the timing button once, the timing function is turned on, the whole machine (lighting) starts and is in the 16-hour timing state, and the corresponding 16H timing indicator light is on (other timing indicators are off)

  State 5: On the basis of State 4, press the timing button once, the timing function is turned on, the whole machine (lighting) starts and is in a 20-hour timing state, and the corresponding 20H timing indicator light is on (other timing indicators are off)

  On the basis of state 5, press the timer button once to jump back to state 1. Form a loop

  Note: The timing mode is a 24-hour cycle mode
