Under Current Double Barrel 32
| NUMBER OF ROWS: | 4 | ||
| NUMBER OF SITES: | 32 | ||
| PLANT SPACING & MODULE SIZE: | 18″ Centers / 8 Gallon |

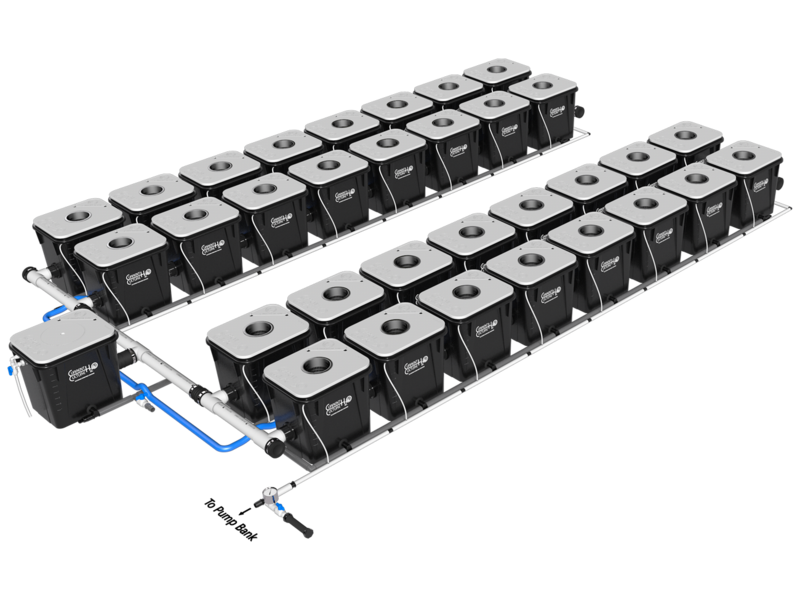

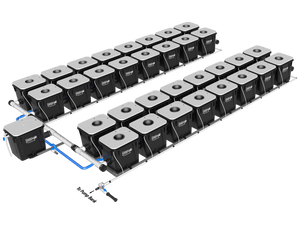

Recirculating Deep Water Culture (RDWC) System
The Under Current® Recirculating Deep Water Culture (RDWC) System features the patented Sub-Current Culture® circulation method. This high-performance water culture system is unmatched in efficiency, layout versatility and ease of use. The Under Current® utilizes negative water pressure to recirculate oxygenated nutrient solution through the plant’s root zone ensuring pH and EC levels are uniform throughout the entire system.
The Under Current® is the cornerstone of the CCH2O Proven Production Approach when used with Cultured Solutions® Nutrients and the CCH2O Nutrient Dosing System.
What's Included with the Under Current Double Barrel 32?
- CCH2O Multi Mod Growth Modules with Drain Well
- CCH2O 5.5″ Heavy Duty White Lids with Port Hole
- CCH2O 5.5″ Heavy Duty Net Pots
- CCH2O Easy Clean Manifolds with UC Spin-Tight Bulkheads
- CCH2O Add-Back Kit
- High Flow Aeration Manifold

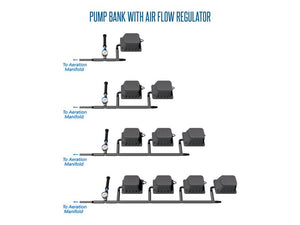

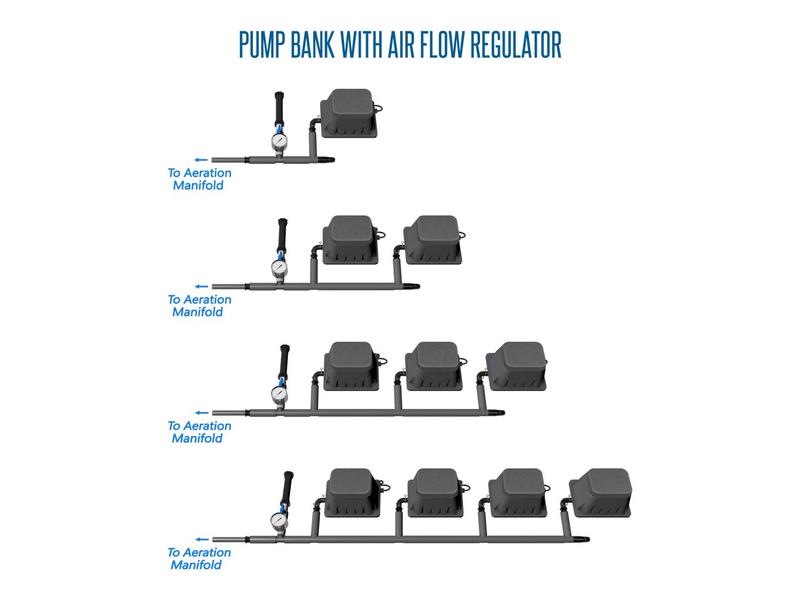

- Air Pump Bank with CCH2O Air Flow Regulator
- Premium Linear Air Pump(s)
- Danner Mag-Drive™ Return Pump with 1″ Return Hose
- Optional Drain Out Kit Available
- Adjustable Float Valve with Reservoir Adapter Kit
- Cultured Solutions™ XS Growers Pack
- 3-Year Limited Warranty.
Under Current System Options
*Boneless Spacing Option: All Under Current systems are available in a “Boneless” configuration. Boneless systems ship WITHOUT straight sections of piping allowing for custom plant spacing.
*Remote Epicenter Option: All Under Current systems are available with a “Remote Epicenter” option. This allows growers to place the Epicenter (control module) on the outside of their grow space or tent.
UCDB32 Recommendations for Use
| GROW AREA (FEET / METERS): | 10′ x 18′ / 3.05m x 5.5m |
| LIGHTING (HORIZONTAL): | 8 X 600W OR 6 X 1000W |
| LIGHTING (VERTICAL): | N/A |
| WATER CHILLER SIZE* (HP): | 1 – 1.5 HP |
| RESERVOIR (GALLONS / LITERS): | 250 / 1000 |
| VEG TIME (WEEKS/IN.): | 1-2 weeks / 12″-18″ |
*General Recommendation - Check Manufacturer's Specifications for proper chiller sizing.
