Slim 320S Dimmable LED Grow Lights 3500k - Full Spectrum Control - LH351H (UV)

ECO Farm


Type: Unknown Type

Product Description:

   Slim320S is engineered to give you performance far beyond what any other LED Grow Light company has in the market today including the new Samsung LH351H Deep RED LEDs rated at 3.1 umols/J And the new Samsung LH351H Royal Blues, Paired with the Samsung White LM301H LEDs which are above 3.0 umols/J with a 2way dimmable system running 1,548 LEDs total for next-generation efficiency and tuning capabilities. Slim 320S is by far one of the most advanced LED Grow Light ever manufactured. Slim 320S when combined with our touch screen master controller gives growers the power to recreate mother nature with precision accuracy.

          Slim 320S has all the best components in the industry but is also designed to last twice as long as all other grow lights today. Dimmers come standard with Slim series lights as well as the industry's most overbuilt cooling system & top quality, long-lasting Meanwell Drivers. Optic LED was the first mainstream LED Grow Light company to begin using LM301H and now we are the first to publicly disclose our collaboration with Samsung and using their newest record-setting technology with full transparency from their Horticulture Specific Line of LEDs.

NEW! Samsung LH351H - 3.1 umols/J





Coverage Footprint:

Flower:                                           Veg:

2' x 4' area (.6m x 1.2m)                2' x 4' area (Max 4' x 4')

Max: 3' x 5' area (.9m x 1.5m)

         (4' x 4' Grow Tent / 1.2m x 1.2m)


Hanging Height & Dimmer Settings :


Seedling: 48"+    / 25% Power
Vegetative: 48" + / 50% Power (or 24" @ 25% Power)


Wk1-3 - @24-30""     / 50% Power
Wk4-6 @18" - 24"  / 75% Power
Wk7-8 @18" - 24"  / 100% Power
Wk9-10 @12" - 18" / 100% Power
Pro Tips: It's always best to set the light up higher and let the plants grow up into the light.


Slim 320S Components:

LEDs: 1,548+ Total LEDs

3500k White LEDs: Samsung LM301H  pcs

- Top Bin Samsung LM301H LEDs  3000k & 3500k Mixed

Bloom Enhancers:

Red LEDs: 24 pcs

- New! Samsung LH351H 660nm Deep RED LEDs 3.1 umols/j

NEW! Samsung LH351H 450nm Royal Blue - 2.8 umols/j



Blue LEDs: 16 pcs

- New! Top Bin Samsung LH351H Royal Blue LEDs

Ultra Violet LEDs: 4 pcs (Faint Dim Purple LED)

LG UV LED - Proven Increased Resin Production and Potency of oils


Optics: 120 Degree Primary Lens on all LEDs

Drivers: Meanwell Dimmable Driver 0%-100% (Industry Best)

Dimmers: 2 Independent Dimmers


Dimmer#1 ( Blue and White LEDs Channel)


Dimmer#2 ( RED and White Channel)


Controller Tech: Fully Compatible - (*Touch Screen Controller is Sold Separately)

2 Way Dimmability - You can Control the 2 Dimmers Independently

Spectrum Control - 2 Way Spectrum Control, add more Blue and White or Red and white light independently or programmed in the timer mode.

Dual Port RJ-11 Controller hookup  - Daisy chain up to 20 lights

Thermal management: Passive Cooling from a significantly Overbuilt extruded Heat sink (Fanless Technology - No Moving Parts)

*Coolest Operating Temp of any High Power Bar Fixture on the market.


Full Spectrum White Light 3500k (Mixed White Light LEDs) (Full Power on 2 dimmers)

660nm Deep RED + 450nm Royal Blue + ultraviolet

(Spectrum Chart from Slim 320H)

 (Powerful Spectrum Control leads to healthier plants with lower stress level leading to higher overall production, yield, and flower quality)



Test in 2' x 4' Area: .6m x 1.2m = .72 Square Meters

PPFD Slim 320S:

(Tested with Apogee MQ-500 meter in 2x4 / .6m x 1.2m Tent @ 320w)

10" Hanging Height PPfd:   ( umols/J)

Slim 320S Specifications:

Grams Per Watt: up to 2.5


HID/HPS equivalency: 650 watts HPS

Kelvin: 3500K Day Light White

IP Rating: IP65 Waterproof

LEDs Per Watt: 5

PPFD @10":

ppf/w :  3.0 umols/J

Actual Max Power Draw: 320 watts max

Amps:  2.8 Amps at 120v ( 1.4 Amps @ 240v)

Voltage : Internationally Used 110 volts - 277volts (240v cord sold separately)

Lifetime: 100,000 Hours+

Warranty: 10 Years full warranty (Industry Best)

Shipping: Free Shipping to 60+ countries

Light Fixture: 42" x 21" Vertical Farming Aluminum BAR Fixture

Cables: 6 Foot attached power cord

Plug: USA, CANADA, EURO, Commercial, etc. (240v sold separately)

(We automatically ship the correct cord for your country)

Dimming: 2 Dimmer Knobs 5%-100%. 2-Way Spectrum Control

Spectrum Control: 2 Dimmer Knobs 5%-100%. 2-Way Spectrum Control

TouchScreen Master Controller: 2 ports, Fully Compatible. 2 Dimmer control

Fixture Dimensions: 42" x 21" x 4.5"

Fixture Weight:  (Aluminum Fixture + Driver Case)

Shipping Weight

Hanger: Comes with 4 adjustable rope ratchet hangers.

Recommended for: Grow Tents, Grow Rooms, Greenhouses & Indoor Cultivations.

*International Shipments may require Taxes & Duties. Contact us for a quote! -

Slim 320S Patent Pending.

The industries only 10 Year Warranty!

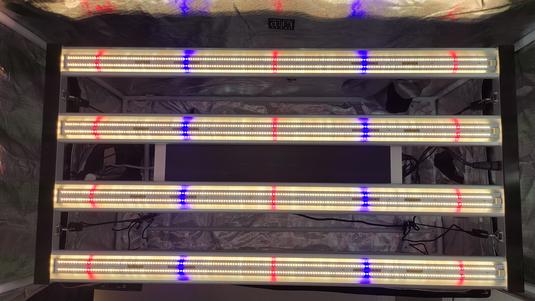

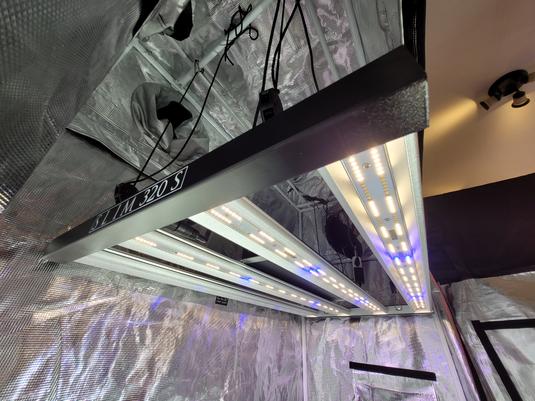

Videos: More Coming Soon Pictures: Slim 320S

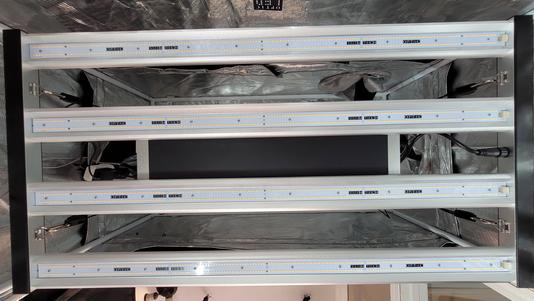

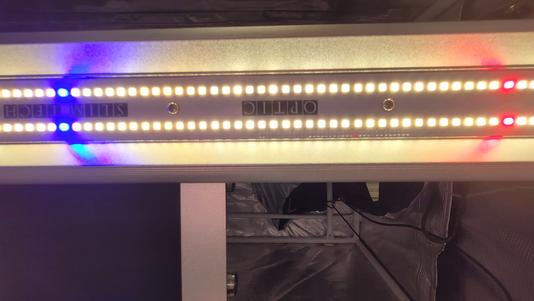

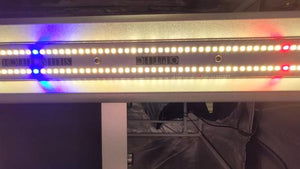

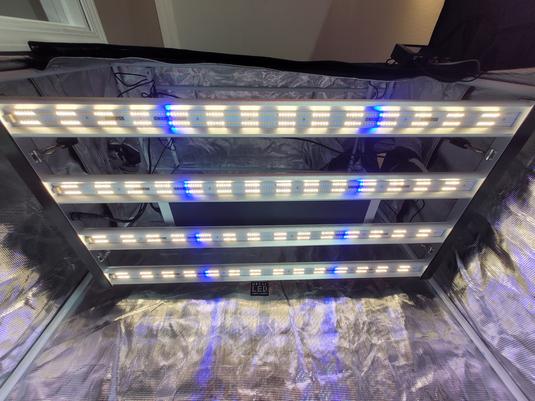

Double Row LED Strip Boards with Optic Slim Tech (LM301H & LH351H Reds)

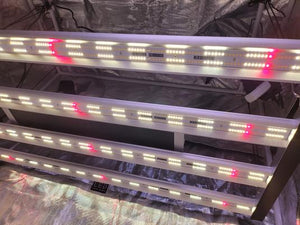

25% Power on Both Dimmers

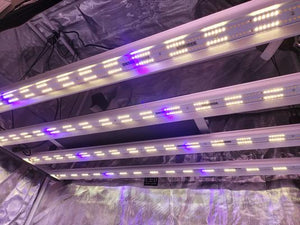

Dual Red & Blue Bloom Enhancers

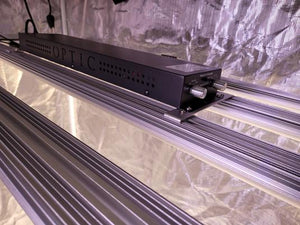

Driver Box with 2 MeanWell Drivers inside
