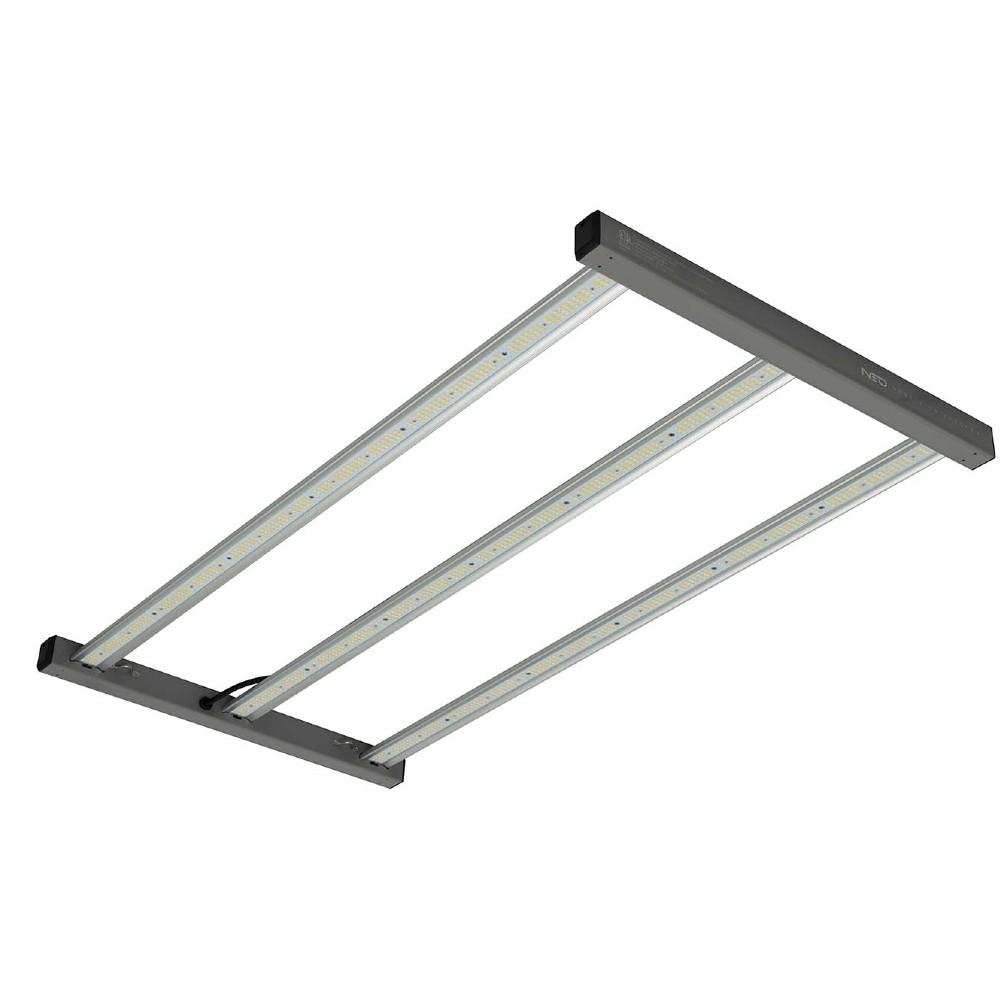

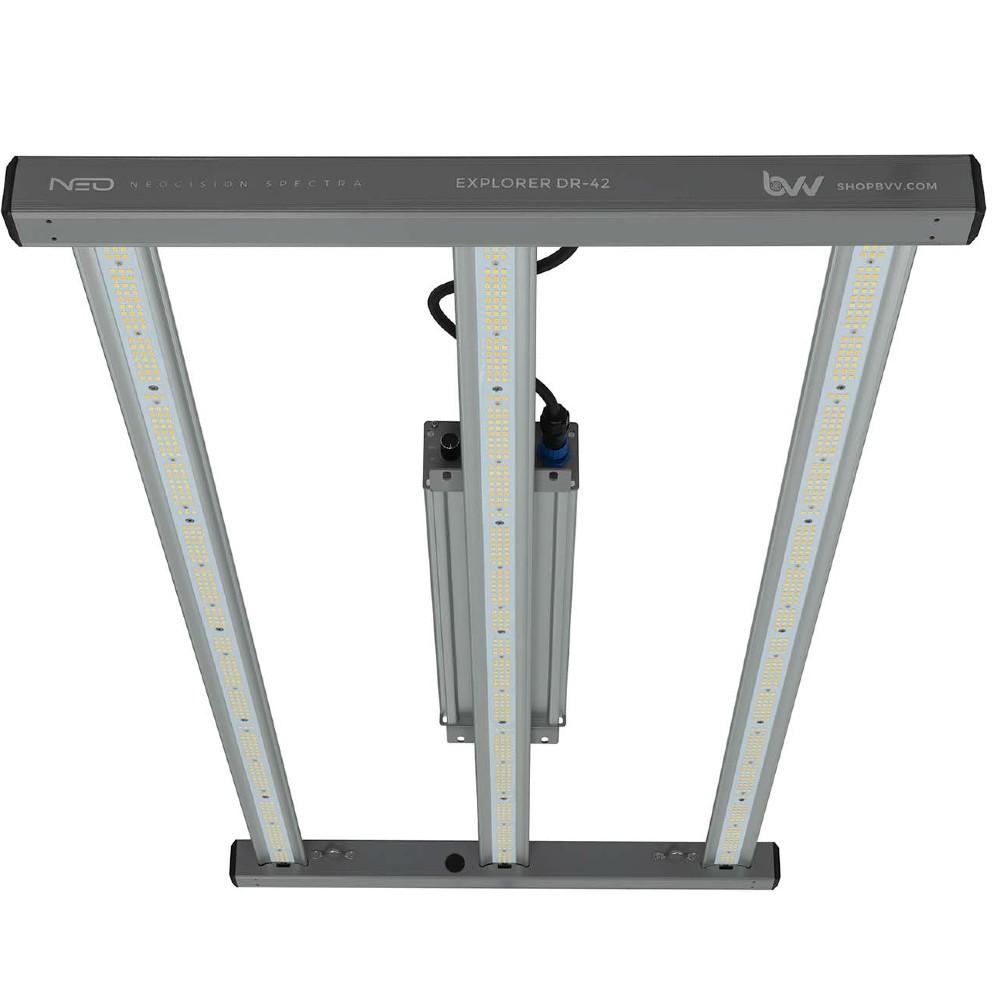

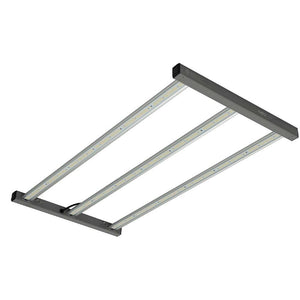

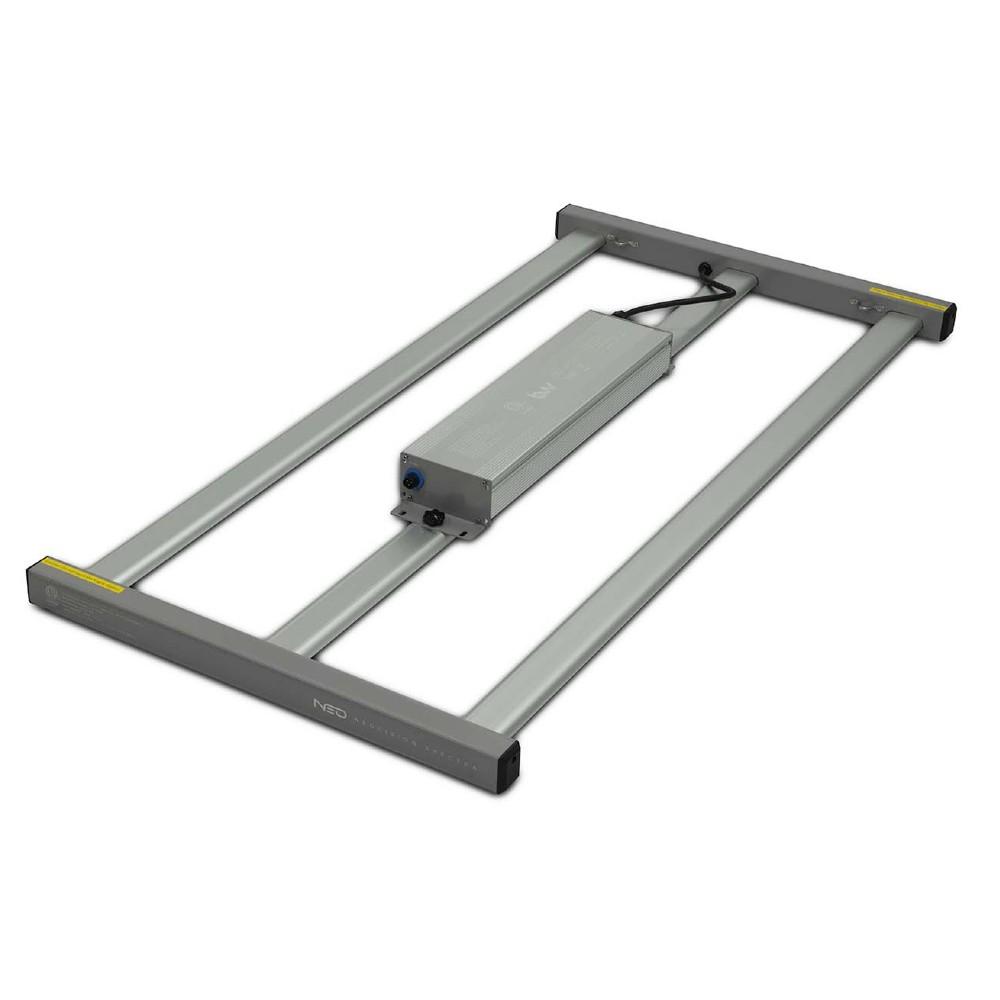

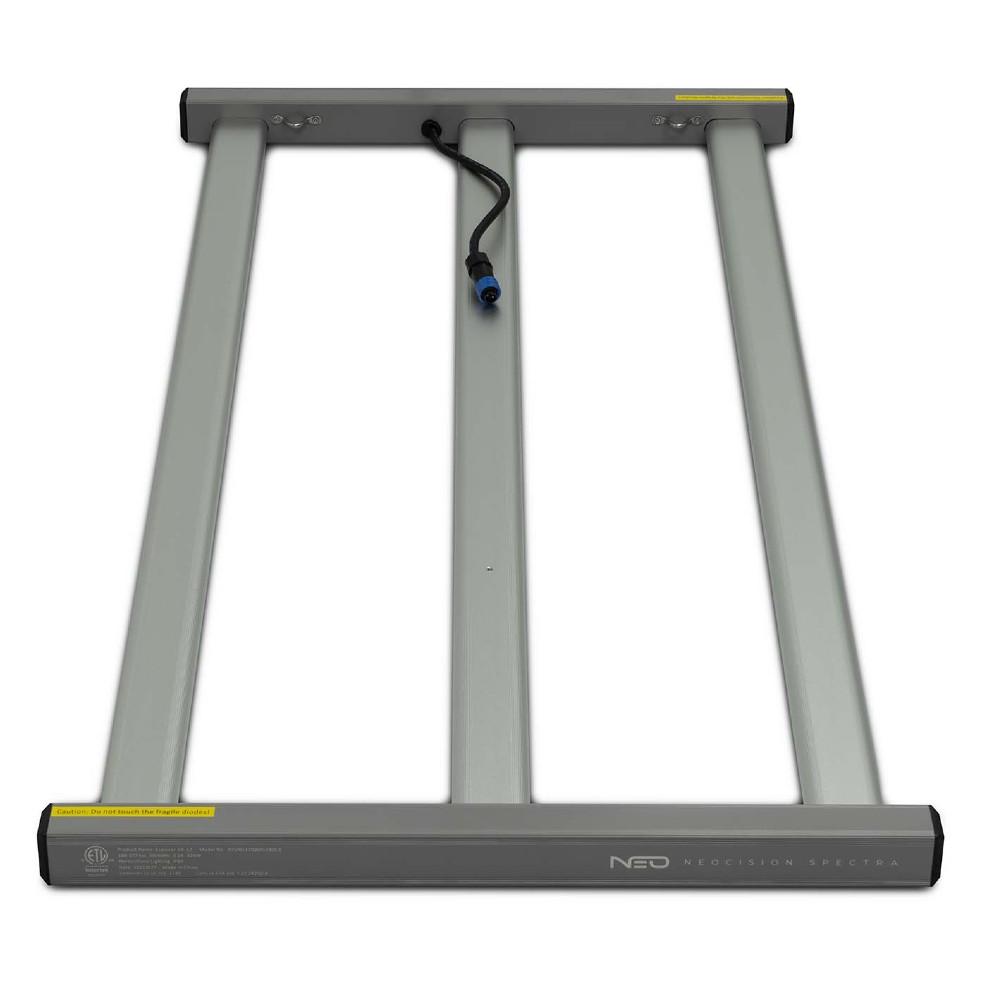

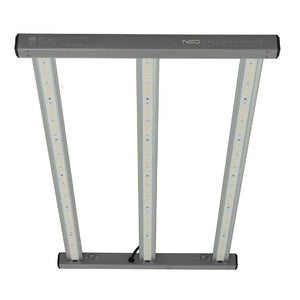

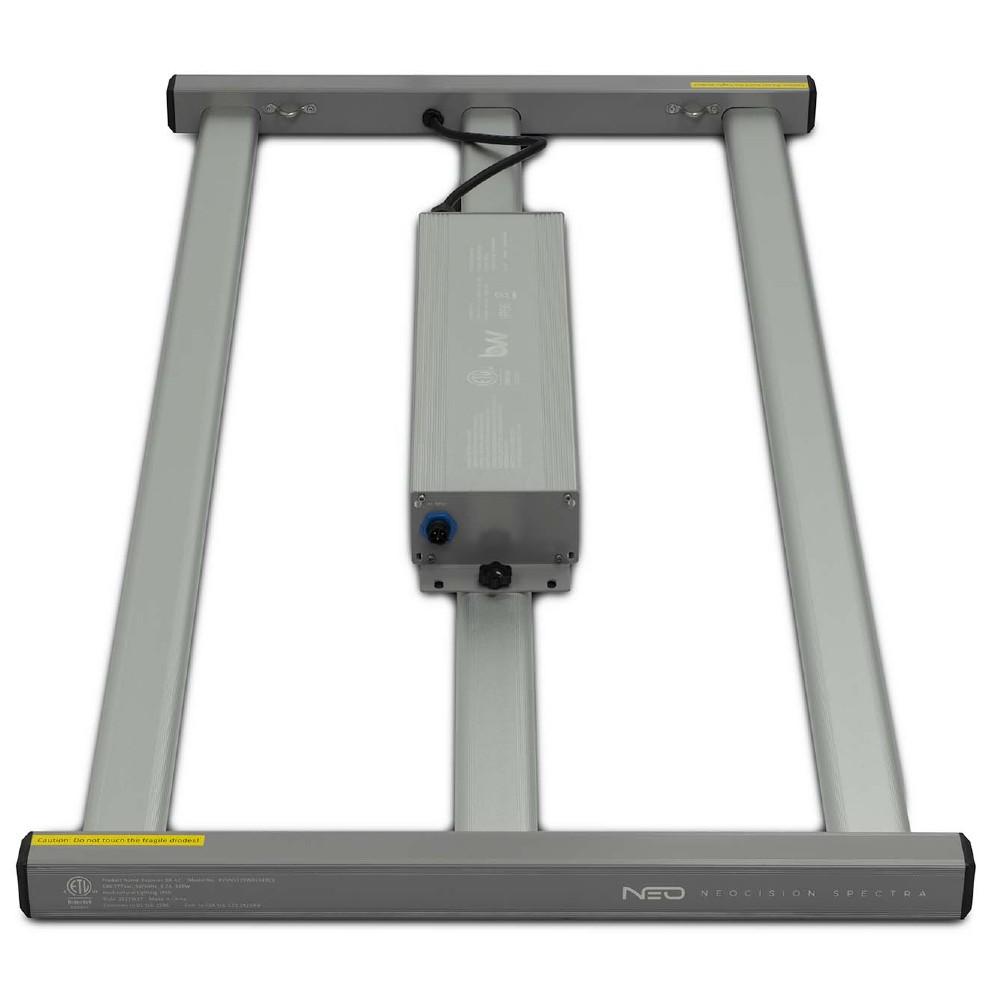

Neocision Spectra Explorer 340W LED Grow Light

The Explorer grow light fixture is designed for a full grow cycle with maximized red for increased photosynthesis. Ideal for 2’ x 4’ tent environments for increased consistency and yield.

FEATURES

• Efficacy up to 2.56 Micromoles / J @120 VAC
• Industry Leading Horticulture LEDs
• RJ Port for Plug and Play Control Systems
• Fast and Easy Installation
• 7 Year Limited Warranty on Fixture
• 8 Year Limited Warranty on Driver

PPFD

Spectrum

SPECTRUM AND EFFICACY

PPF Efficacy: 2.56 at 120 VAC

Photon Flux (µmol/s) (400-700nm): 870

Photon Flux Blue (µmol/s) (400-500nm): 161

Photon Flux Green (µmol/s) (500-600nm): 355

Photon Flux Red (µmol/s) (600-700nm): 355

Total Blue/Red - Energy Bands: 516

Blue: 18.51%

Green: 40.76%

Red: 40.73%

POWER

Power Consumption: 340W AC

Driver: Sosen

Power Factor: >0.95

Surge Protection: 6 KV

Amps:

• 120V: 2.90 A
• 208V: 1.75 A
• 240V: 1.51 A
• 277V: 1.31 A

DIMENSIONS

Fixture Size (driver mounted on the fixture): (L) 43.9” x (W) 22” x (H) 4.1”

Fixture Size (without driver): (L) 43.9” x (W) 22” x (H) 1.6”

Power Supply Dimension: (L)18.7” X (W) 4.4” X (H) 2.4”

Driver Net Weight: 6.0 lb.

Fixture Net Weight: 6.0 lb.

OTHER

Mounting Height: >6” above canopy

Beam Angle: 120 Degree

Input Voltage: 100 - 277 VAC

Manual Dimming Knob: Yes

Built In Control Ports: Yes

Power Cord Length (Extensions available): AWG 18, 6 Foot

Plug Type: Standard Plug 120 VAC - NEMA 5-15P; Substitute Plugs (Upon request at order) 240 VAC, 277 VAC, Pigtails

Adjustable Height Hanging Kit Included: Yes

Fixture Warranty: 7 Years Limited

Driver Warranty: 8 Years Limited
