Horticulture LED Ligh Group HLG 100 V2 DIY Quantum Board

ECO Farm


Collections: ECO Farm Quantum Board, Horticulture Lighting

Type: Unknown Type

Product Advantages:

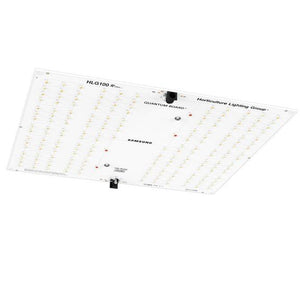

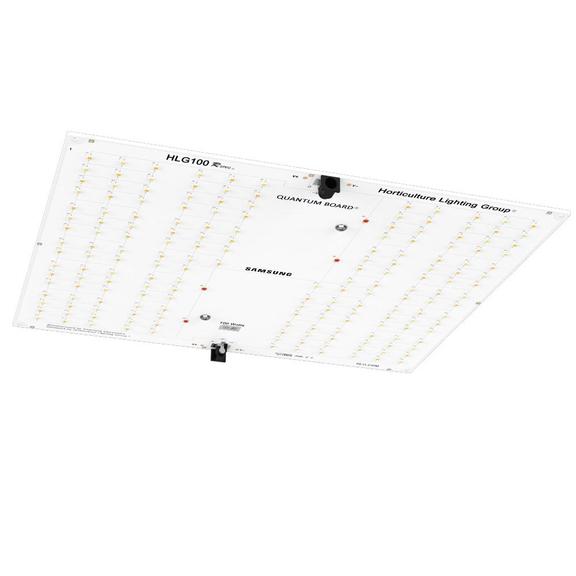

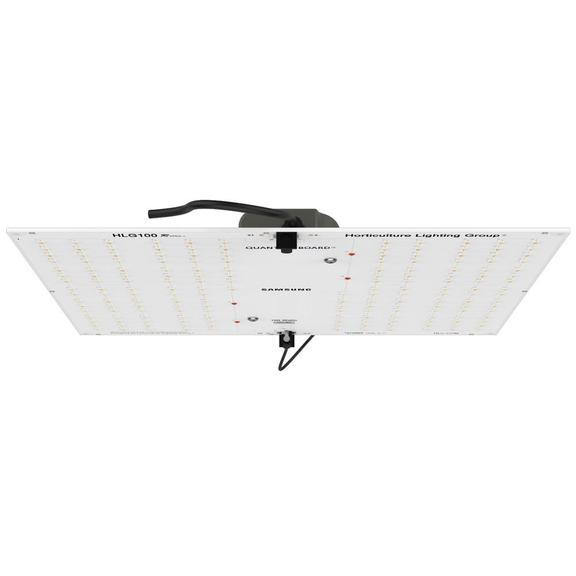

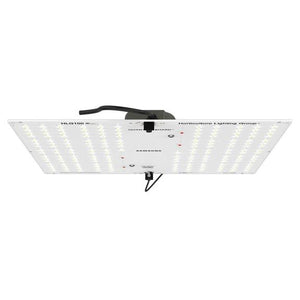

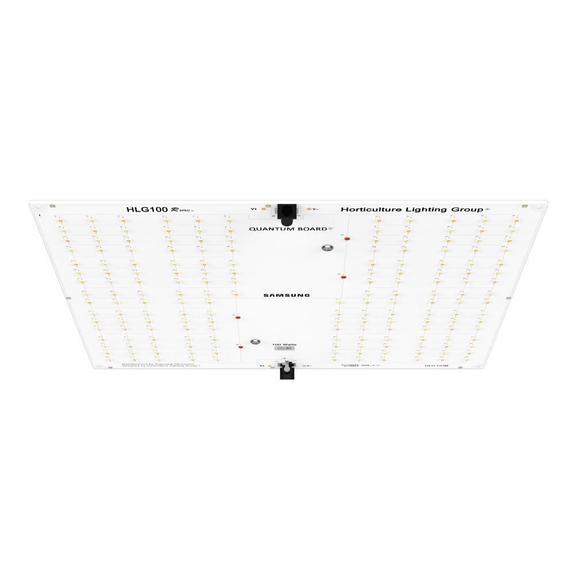

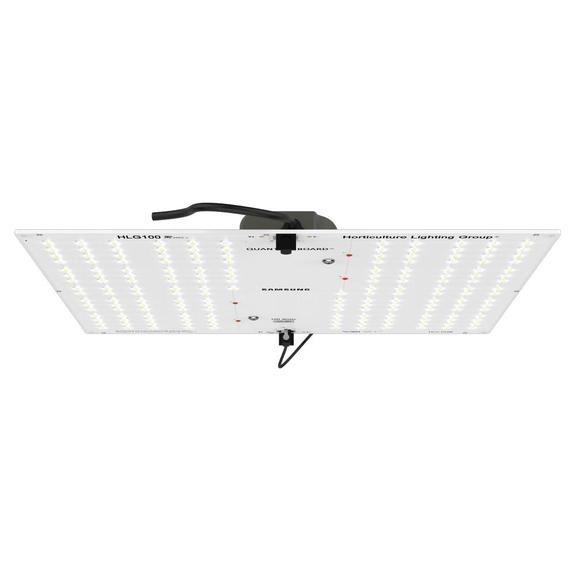

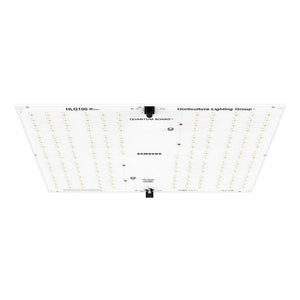

The HLG 100 V2 uses custom-designed high-efficiency quantum boards.

With totally192 top-bin Samsung LM301B LED's, this fixture produces 15,000+ lumens with just 96 watts of power.

Top Features:

  • 96-watt power draw
  • High-efficiency Samsung LM301B LED
  • White Light Full Spectrum for better results
  • Reliable passive-cooled design
  • Better canopy light penetration with diffused light
  • Non-dimmable Mean Well power supply included with NEMA 1-15p plug

Coverage Area:

  • Veg/clones: 6 sq ft - 9 sq f
  • Flower: 3 sq ft - 4 sq ft

Equivalent to 200W T5 or 250W CFL output or 200W metal halide.



Product Spectrum:



PAR:

Product parameters:

Wattage draw: 96 watts

HID equivalent: 200 watts T5 or 250 watts of CFL or 200W metal halide

LEDs: 196 x Top-Bin Samsung LM301B diodes

    PPF: 225 umol/s

    Spectrum: 3000K or 4000K

    System efficiency: 155 Lm/W

    Par efficiency: 2.5 umol/j

    Coverage area:

    • Veg/clones: 6 sq ft - 9 sq f
    • Flower: 3 sq ft - 4 sq ft

    Thermal management: Passive cooling

    Dimensions: 32.5 cm x 28 cm

    Operating/input voltage: 90-264VAC; 50Hz-60HzCalifornia Lightworks

    Product includes: Quantum Board w/ driver and hangers

    Recommended for:

    • Grow tents
    • Grow small grow spaces
    • Small indoor grows
    • Vegetative growth and/or flowering
    • Full-cycle growing from seedling to flower
    • Soil, hydroponic, aeroponic, or aquaponic systems

    Manufacturer's warranty: one year
