ECO Farm 480W V2 Samsung 301B Chips Full Spectrum Quantum Board LED Grow Light

ECO Farm

10034-4


ECO Farm 480W V2 quantum board is made of Samsung LM301B and Osram 660nm with 2.8μmol/J high efficacy. Full-cycle light recipe for medicinal plants, which can obviously improve the quality and harvest. It will be an excellent choice for cultivation in grow tents, indoor rooms and basements.


Passive cooling design without noise but with great heat dissipation.
Dimmable design with more flexible control.
High-quality original diodes from famous brands like Samsung 301B.
Adjustable distance between heatsinks effectively allows growers to cover the gradual growing plants.
IP68 waterproof connector and IP65 waterproof covering for long lifetime

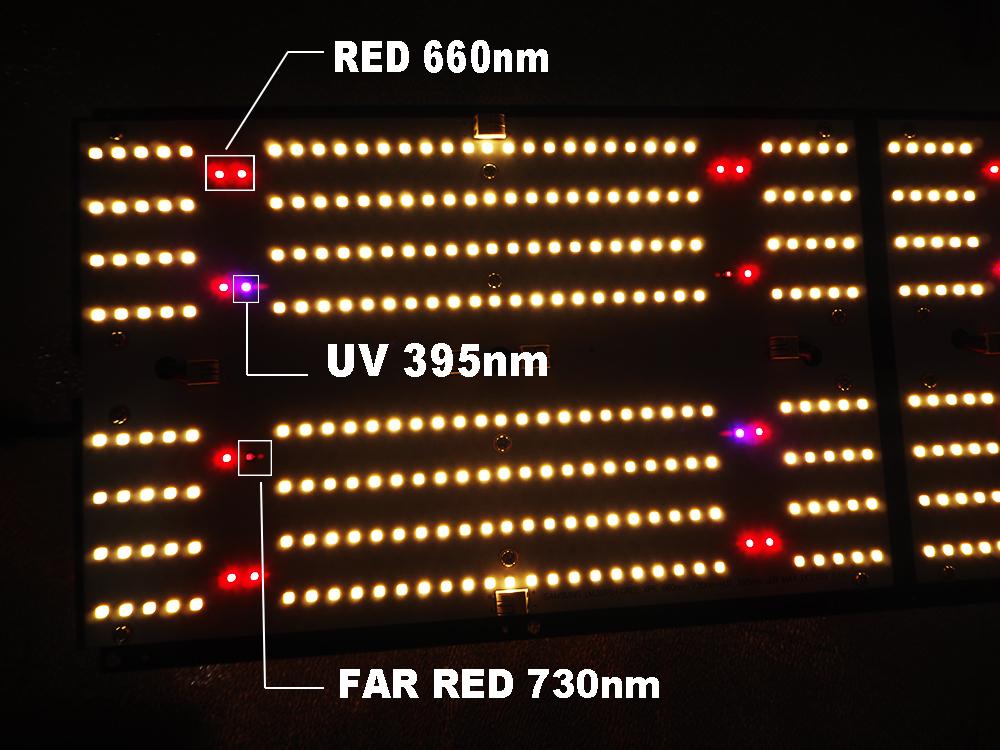

2.8μmol/J high efficacyby Samsung LM301B and Osram 660nm.
1-to-1 replacement of 1000W SE HID luminar.



 Power:480W

Input Voltage: 90~277VAC, Power: 480W, PF>0.9



Beam Angle: 120°

Tolerance Range for Optical and Electrical Data: ±10%

Lifespan: 50,000 hours (Ta≤25°C), Warranty: 3 years

Suggest Height: 24in~30in (0.6m~0.75m) for germination; 24in (0.6m) for seedlings; 18in~24in (0.46m~0.6m) for veg; 12in~18in (0.3m~0.46m) for bloom

Supplementation time:16-20 Hours per Day

Footprint: 1. CO2 supplementation: 5×5ft in veg, 4×4ft in flowering; 2. Non CO2 supplementation: 4×4ft in veg, 3.3×3.3ft in flowering.

Net Weight: 13kg

Box Gross Weight: 15kg

Surface Temperature Rise: Tc 28K, Operating Temperature: -30°C~40°C

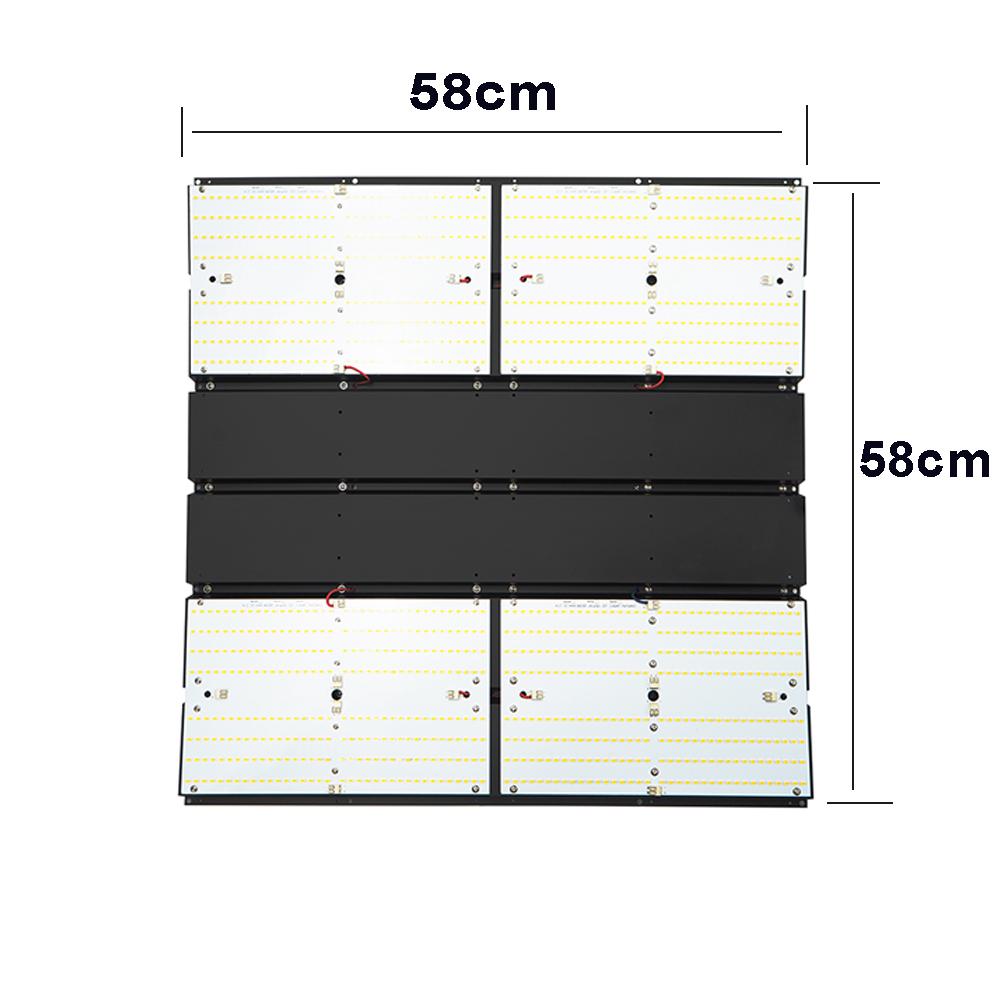

Dimension: 603×568×63mm (23.7×22.4×2.5in)

PPFD:

1230 @ 0.46m/18in;

903 @ 0.56m/22in;

828 @ 0.61m/24in

Illuminance:

82612 @ 0.46m/18in;

61039 @ 0.56m/22in;

55357 @ 0.61m/24in

Tested without Light Reflection:


Tested in Grow Tent:
