ECO Farm 24 Hour Switch Programmable Cyclic Timer Outlet for Grow System

Note: When the package is received, if the timer screen is not displayed and the internal battery is exhausted, please plug in the power and press the “Reset” button to restore the item to normal and charge.

Product Name: Timer

Number of programs: 10 groups setting

Hull material: PC

Operating temperature: -10-40 ℃

Min in the timer setting: 1 Minute

Accuracy: +/- 1 Min / Mon

Note:

1.When in setting interface, it will back to local time in 20 seconds without any operation

2 Be sure to Press the "RES/REC button in setting interface to reset or recall data

TIME SETTING CURRENT

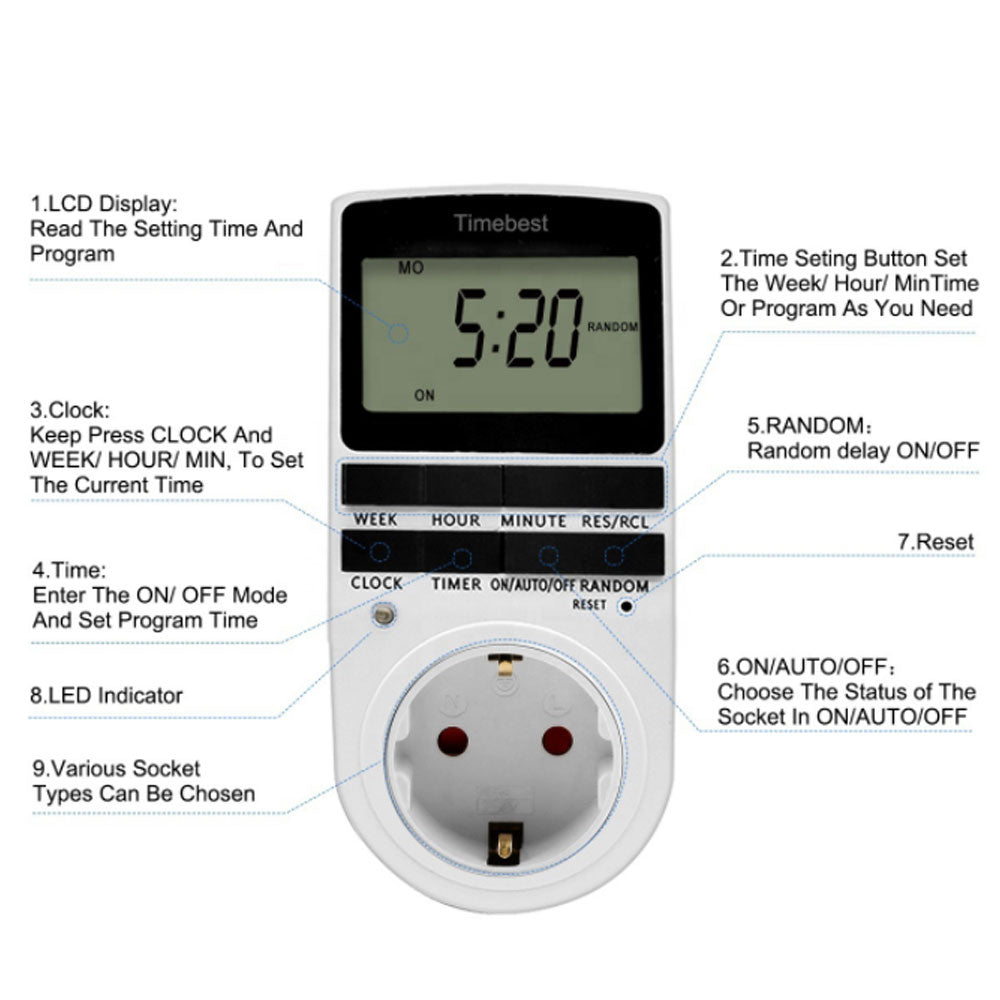

1. Press and hold the “clock” button and press the “week” button until the actual day is displayed, then pressing the “ hour “or “minute” and “Clock” button until the current time or MINUTE is displayed. When setting, the week, hour or minute buttons can be selected for quick counting

2. Release both buttons, the week and time will be set.

3. To reset the incorrect time,reset it and then repeat the previous steps.

Setting programs：

1. Press the timer button and release. 1on Will display on the screen.

2. Press the week button to set the day or blocks of days, set the time by pressing the hour button, then the minute button.

3. Press the " timer" button again to complete the first setting .1 off will display on the screen.

4. Press the week button to set the day or blocks of days, set the time by pressing the hour button, then the minute button. 1 group of setting finish .

5.Repeat 2 ,3 and 4 to program the other setting.

6. After finishing the settings, press the clock button and the timer is ready to operate

Description:

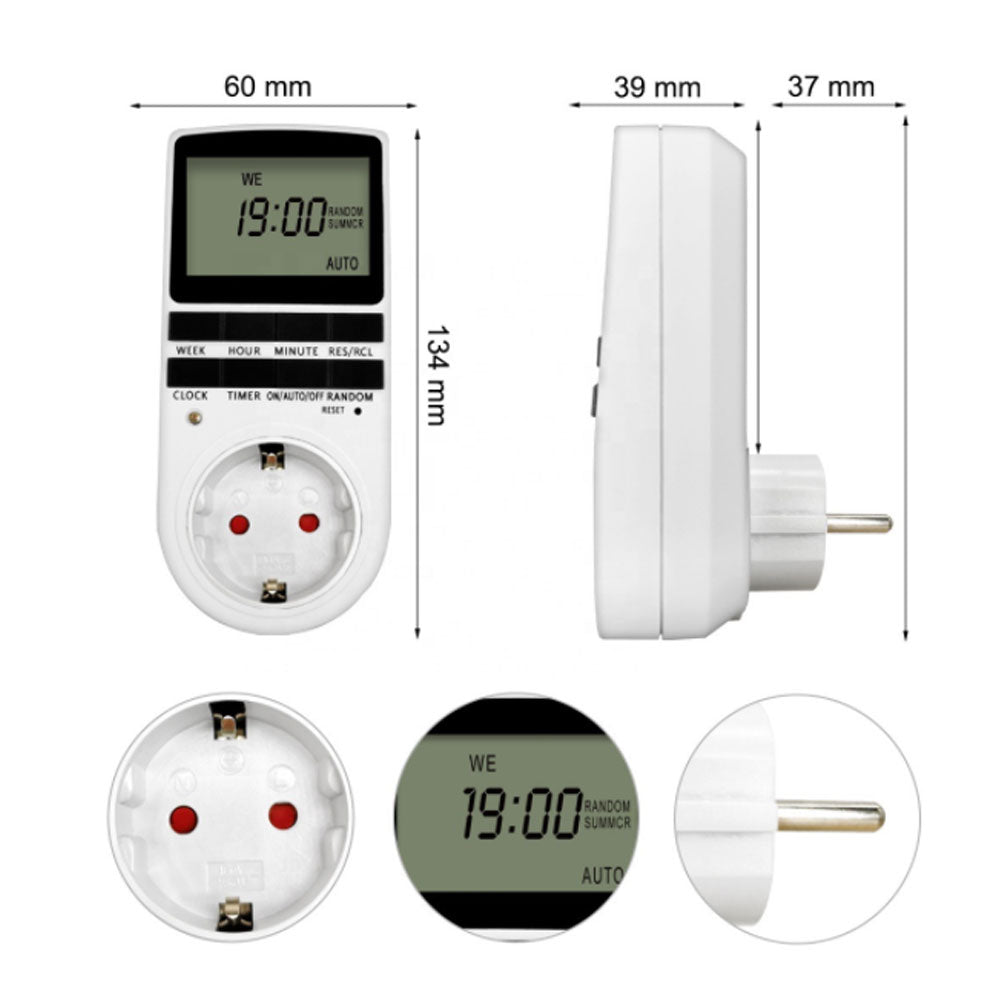

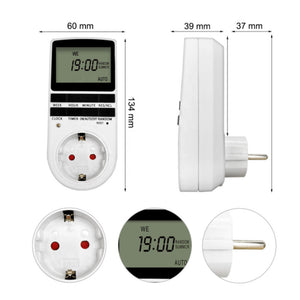

Dimension(approx.):7.6 x 6 x 13.4 cm

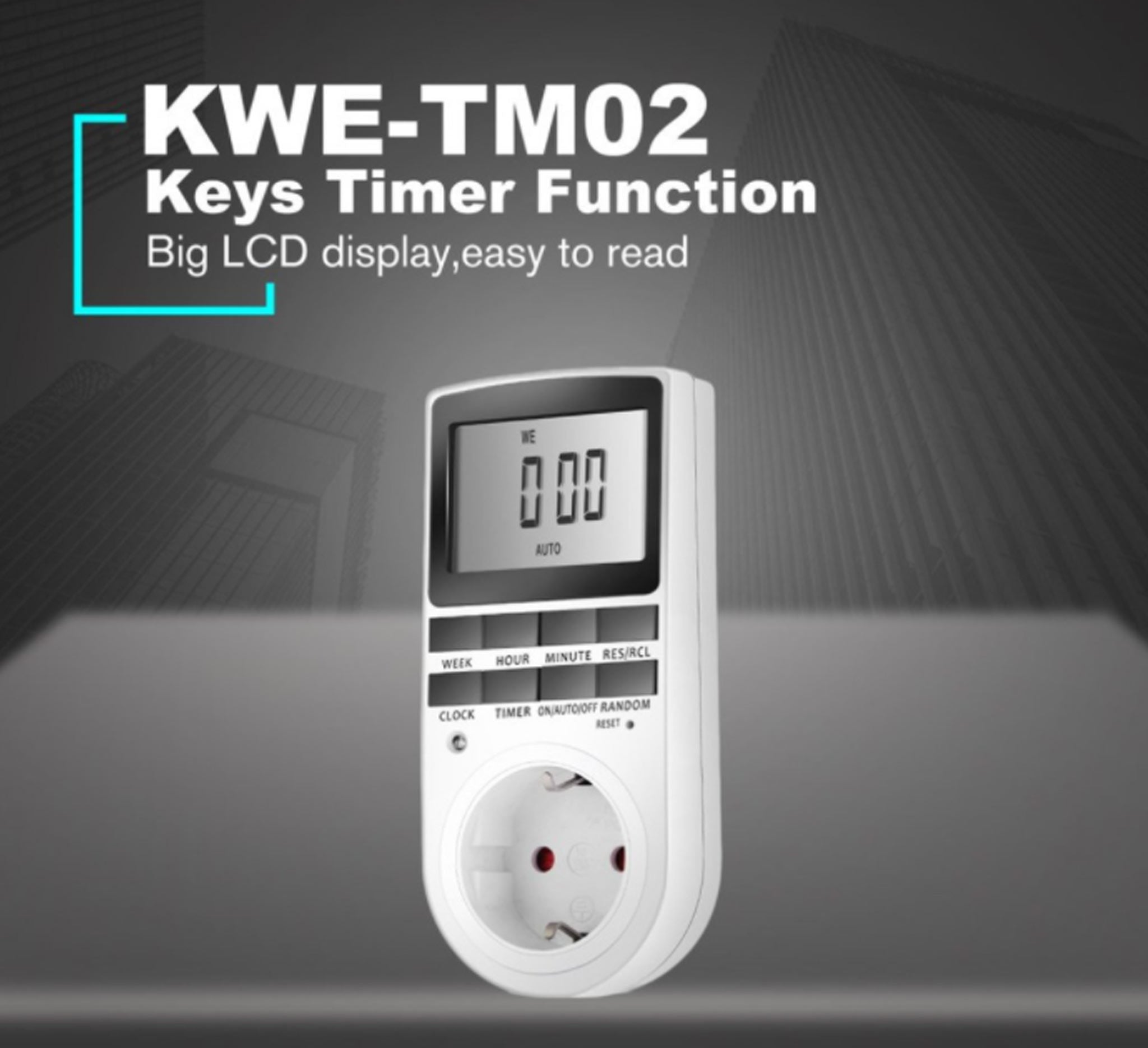

Large LCD Display
