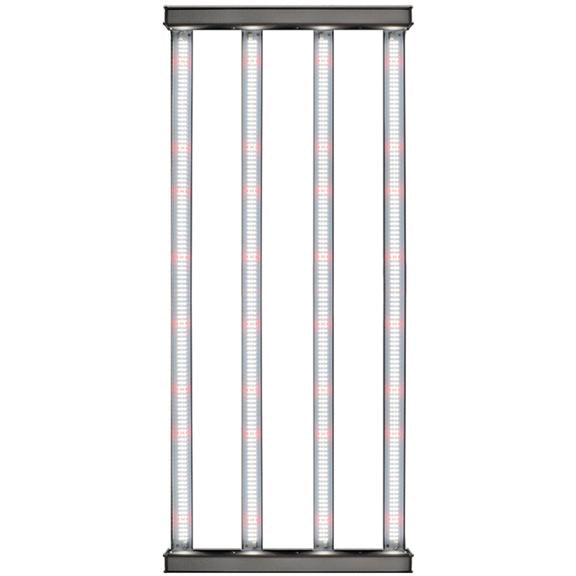

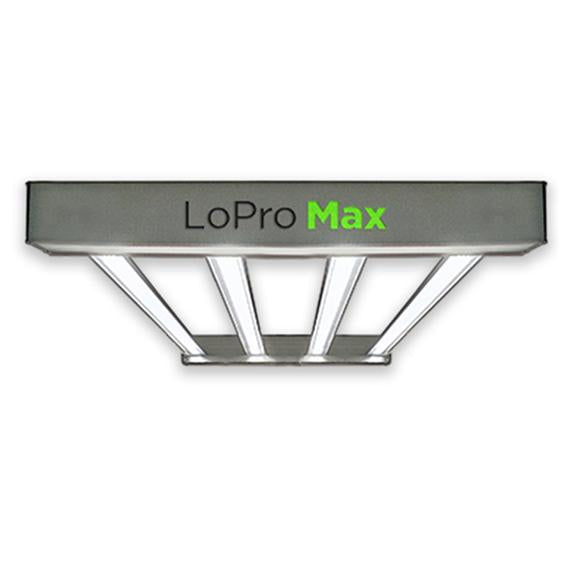

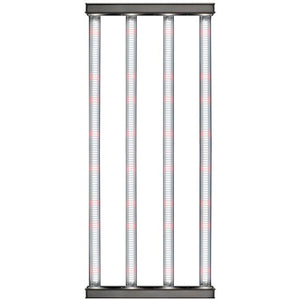

The Active Grow LoPro Max Series Luminaires are lightweight and ultra-thin LED fixtures designed to replace HPS lights in vertical racking or sea of green applications. The LoPro Max features Philips chipsets for maximum light output and proprietary optics that create uniform light coverage and deep canopy penetration for high DLI requirement plants. Each fixture comes standard with Active Grow’s proprietary Entourage Spectrum which incorporates 730 nm wavelengths to increase photosynthesis rates via the Emerson Effect. These additional Far-Red wavelengths boost healthy growth during vegetative and flowering cycles. The natural high CRI 94 light also makes plants look more vivid, helping growers spot pests and fungus like powdery mildew easier. The integrated rotary dimmer provides smooth dimming down to 10%. Growers can also dim multiple fixtures via the daisy chain power and dimming ports using a smart controller. The luminaires are DLC listed, IP65 rated for tough CEA applications and deliver a long lifetime of outstanding and consistent performance.
DLC Horticultural Listed
Qualified product under DLC’s Horticultural Lighting Program
Lightest in Class HPS/HID/CMH Replacement
The LoPro Max Series Luminaire is a lightweight (320W only 12.5 lbs) horticultural fixture that features a super thin design (less than 3’’ with no bulky drivers) which allows it to go to work in minimal clearance vertical racking systems
Built with Attention to Detail
Premium Philips brand chipsets, fully dimmable drivers and all IP65 rated components allow the LoPro Max to perform at the top of its grow game in any space
Save 45% of energy costs compared to 600W HPS and HID lamps with additional savings available from lower heat and HVAC costs
The Full Spectrum incorporates 730 nm wavelengths to increase photosynthesis rates via the Emerson Effect. These additional Far-Red wavelengths boost healthy growth during vegetative and flowering cycles. The natural high CRI 94 light also makes plants look more vivid, helping growers spot pests and fungus like powdery mildew easier
Integrated Dimming System
Built-in rotary dimmer provides smooth dimming down to 10%. Also compatible with 1-10V hardwiring and smart controller options
Daisy Chainable Power & Dimming
Dim multiple fixtures using the built-in power and dimming daisy chain ports with a smart controller
IP65 rated components protect the fixture from dust and water exposure commonly encountered in most CEA applications
SafeShield proprietary optics create a thermal buffer to protect LED diodes from overheating, guaranteeing an extra-long lifetime
Extra Long Lifetime & Guarantee
Features an exceptional 50,000-hour lifetime and a 5-year limited warranty
All fixture components and manufacturing processes certified safe by UL standards
Features a natural high CRI 94 light with additional 730 nm Far-Red wavelengths essential for boosting healthy growth during vegetative and flowering cycles.
- Power: 320 watts
- Coverage area: 2’x4’ (Flower) 3’x4′ (Vegetative)
- Input voltage: 120-277V 50-60Hz
- Amperage: 120V (2.66A) / 208V (1.53A) / 240V (1.33A) / 277V (1.15A)
- Rated power factor: >90%
- Light distribution: 120°
- Thermal management: Passive
- PPF output (400-700 nm): 825 µmol/s
- PBAR output (280-800 nm): 900 µmol/s
- PPF efficacy: 2.55 µmol/J
- PBAR efficacy: 2.77 µmol/J
- Spectrum: Entourage Spectrum
- CRI: 94 (typical)
- Dimensions: 45.67" x 21.62" x 2.87"
- Weight: 12.5 lbs (5.7 kg)
- Mounting height: 6-36″ (152-914mm)
- Dimmable: Integrated dimmer 10-100% / 1-10V hardwire / Smart controller
- Daisy chainable power: Yes
- Daisy chainable dimming: Yes
- Smart controller compatible: Yes
- IP rating: IP65
- Lifetime: 50,000 hours
- Warranty: 5 years
- Certifications: DLC, UL 8800, UL 1598 Wet-location rated
- Accessories included: 2 Y-hangers, 8.2′ (2.5m) 110V NEMA 5-15P power cord
Active Grow 320W LoPro Max Specifications
||3' x 4'
||2' x 4'
||45.67" x 21.62" x 2.87"
