Lumatek Zeus 600W LED Grow Light VS ECO Farm High Efficacy 660W 180° Foldable Samsung 301B+ Osram Chips Dimmable Commerical Light Strip

June 20, 2020

Lumatek Zeus 600W LED Grow Light

  The Zeus 600, the Zeus 600 Pro and a Zeus 1000 Watt Pro was the 2020 new upgrade grow light strips. They are using Osram and LUMLED Leds and a Lumatek led Driver. They could be a good alternative to Amares Bar 8 or Gavita Pro 1650e light.

  Zeus 600Pro w/ x2 , 100w bars added, would disperse the 600w over x8 bars rather then x6. The reasoning for doing this is not so much for coverage but for efficiency & longevity. There are more diodes in the Pro-Model, increasing efficiency.

  With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide single-source lighting for entire grow cycle from vegetative through flowering period.

  The Lumatek Zeus 600W LED is a linear multi-light bar fixture producing PPF of 1380 µmol/s and a Photon Efficacy (fixture efficiency) of 2.3 µmol/J.

Technical specifications:



Zeus 600w

Zeus 600w Pro

Total leds Per Unit

1,968

3,708

Efficacy

2.3 μMol/J

(micromoles per joule)

2.7μMol/J

(micromoles per joule)

PPF

1380 μMol/s

(micromoles per second)

1620 μMol/s

(micromoles per second)

Input Voltage

200-240v

200-240v

Power Consumption

600w

600w

Footprint

up to 1.5x1.5m

up to 1.5x1.5m

Waterproof

IP65

IP65

Lifetime

60,000 hours

60,000 hours

Light Distribution

120(degrees)

120(degrees)

Light Source

Osram + Lumileds

Osram + Lumileds

Dimmable

25%,50%,75%

25%,50%,75%

External Control

With Lumatek Digital Panel

With Lumatek Digital Panel

Weight

13.5KG

13.5KG

Dimensions

1091x1182x52mm

1091x1182x52mm

Spectrum

Full Spectrum

Full Spectrum


  The array of LEDs create a uniform spread of light at short distance to the crop enabling single source grow lighting for multi-layer cultivation systems, single benches in low rooms and grow tents.

  The Zeus is built using high quality Lumatek drivers and top bin LEDs from Osram and Lumileds Philips generating a full-spectrum light source ideal for veg and flowering cycles.

  For different cultivars, propagation and vegetative growth periods the Zeus may be dimmed without losing efficiency. The high efficiency and low powered LED configuration with six LED bars reduces the temperature of the LEDs increasing the output and improving light maintenance.

  The Zeus fixture can also be externally controlled with a Lumatek digital lighting controller featuring automated dimming, temperature safety control, Sunrise & Sunset Mode for up to 100 fixtures per controller.

  With the advances in technology and fixture performance, high quality LED horticultural lighting is now a credible option offering a significant return on investment to cultivators. Lumatek full spectrum horticultural LED solutions balance light quality (spectra) with light quantity (intensity and duration) sufficient to provide single-source lighting for entire grow cycle from vegetative through flowering period.

  Compared to regular open HPS/MH solutions the Zeus can achieve 30-40% less HVAC capacity.

  100W Standard LED bar only to be used with compatible Zeus 600W Standard Driver/Fixture

  For the Zeus 600w Pro, we’d recommend this ideally in a 1.5x1.5m tent. For a 1.2x1.2m footprint, only the most intensive growing systems would be able to cope with this light at full power. With that being said, the ability to dim this light, means that it’s still a fantastic option for 1.2x1.2m growers, giving you the option to push limits, experiment with hanging heights and increase efficiency further; remember after all, the Pro unit has a staggering number of 3,708 total diodes, meaning even more impressive efficiency can be attained when dimming.

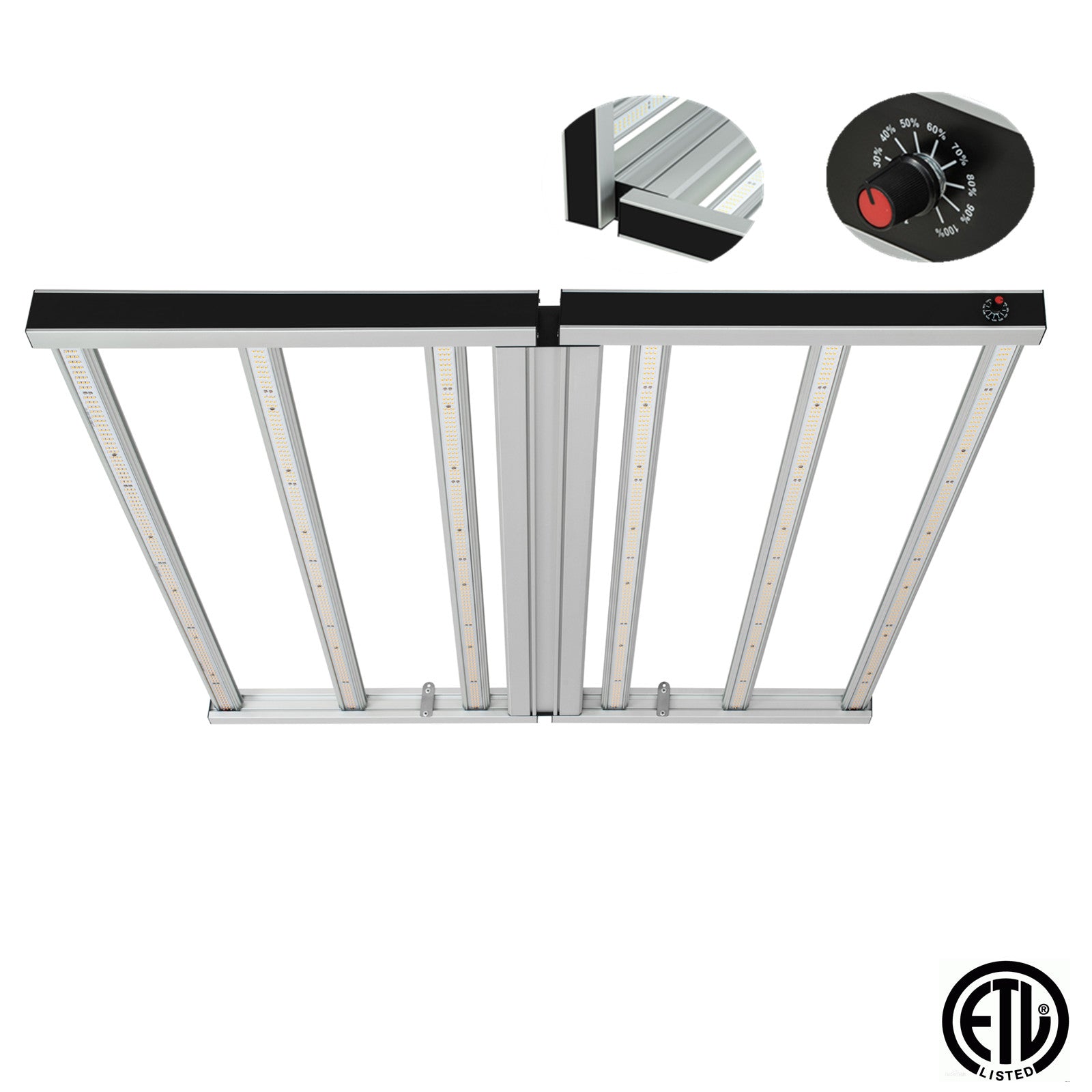

ECO Farm 660W 180° Foldable Samsung 301B+ Osram Chips LED Light Strip

  ECO Farm 660W foldable light strip is a lower wattage than you may think, with just a 646-watt power draw. It can replace a 1000w HPS, without sacrificing any light intensity or quality. It can also be dimmed up to 50% without any loss in efficiency.

  ECO Farm light strip operating at 660 watts with an output of 1700 µmol s-1, this fixture achieves an impressive efficacy of 2.6 µmol s-1 per watt. Eight passively cooled LED bars provide intense light coverage with no fans or moving parts—significantly reducing the number of possible fail points compared to other fixtures.

  Super efficient the ECO Farm led light strips LED provides 2.6 µmol s-1 per watt whilst only consuming 645 watts of power! Passively cooled with no moving parts or fans the LED Grow Lights will reduce your grow room cooling costs in comparison to running hps (high pressure sodium) lighting systems.
